SKU: 02-03-00-00047
Socket: AM5
Motherboard Chipset: AMD B650
Motherboard Form Factor: ATX
Memory Type: DDR5
Wi-Fi Standard: Wi-Fi 6E
PCIe Generation: PCIe 4.0
Memory Support: DDR5 8000(OC) down to 4400 MT/s, up to 256 GB
Memory Slots: 4
AMD B650 chipset, socket AM5
4x DDR5 DIMM up to 256 GB, OC up to 8000 MT/s
PCIe 4.0 x16 primary slot (from CPU)
2x M.2 slots
Wi-Fi 6E with 2T2R antenna
DisplayPort and HDMI rear outputs

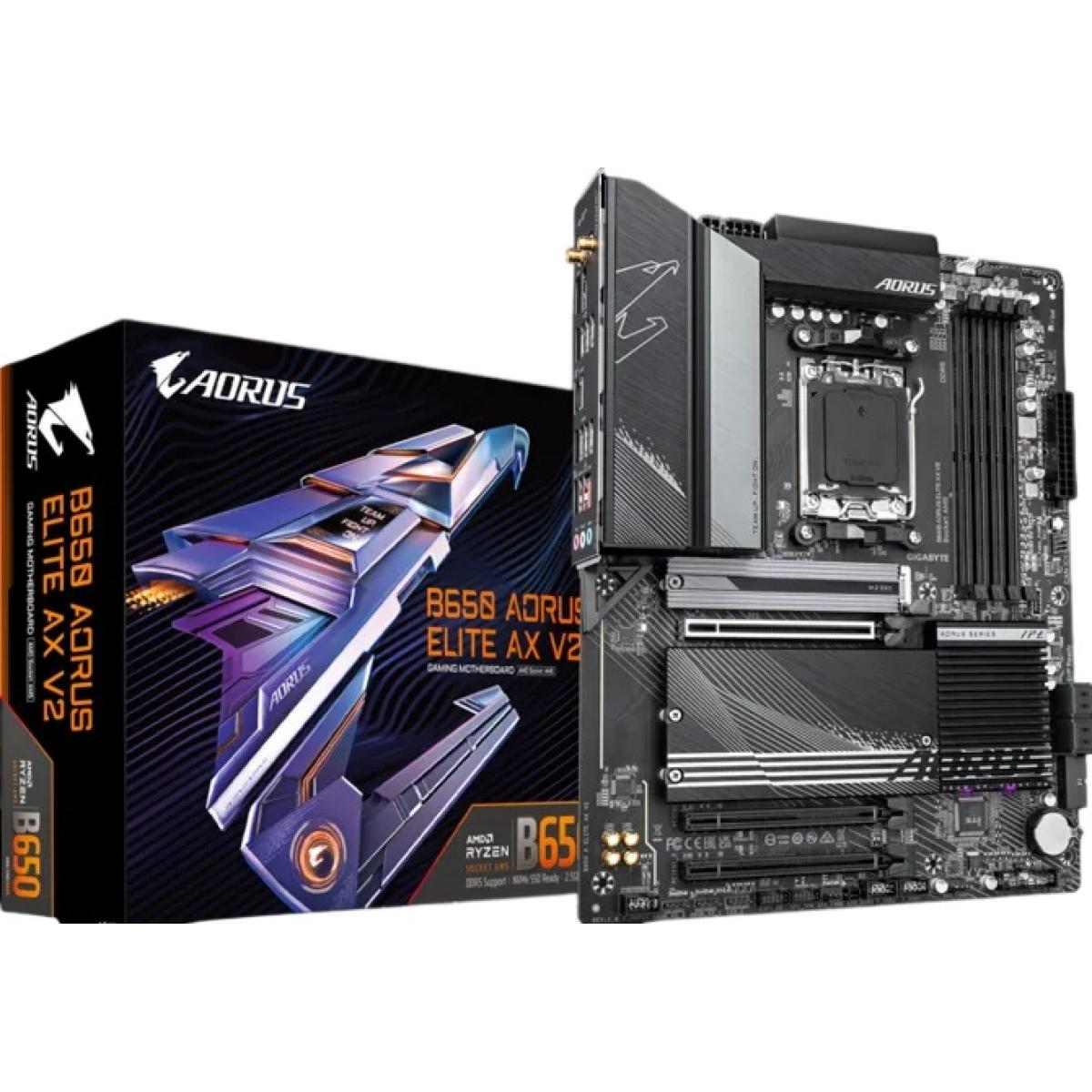

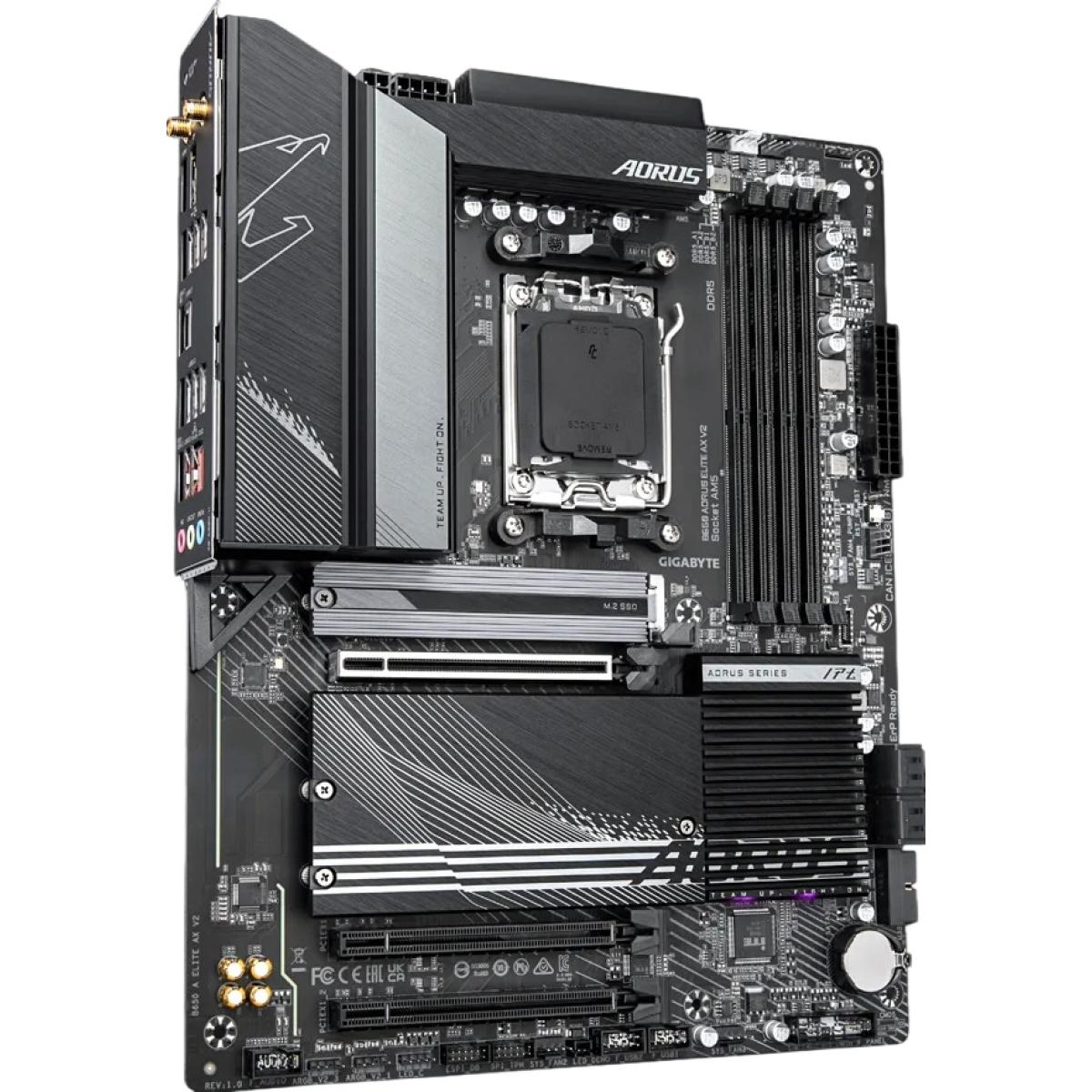

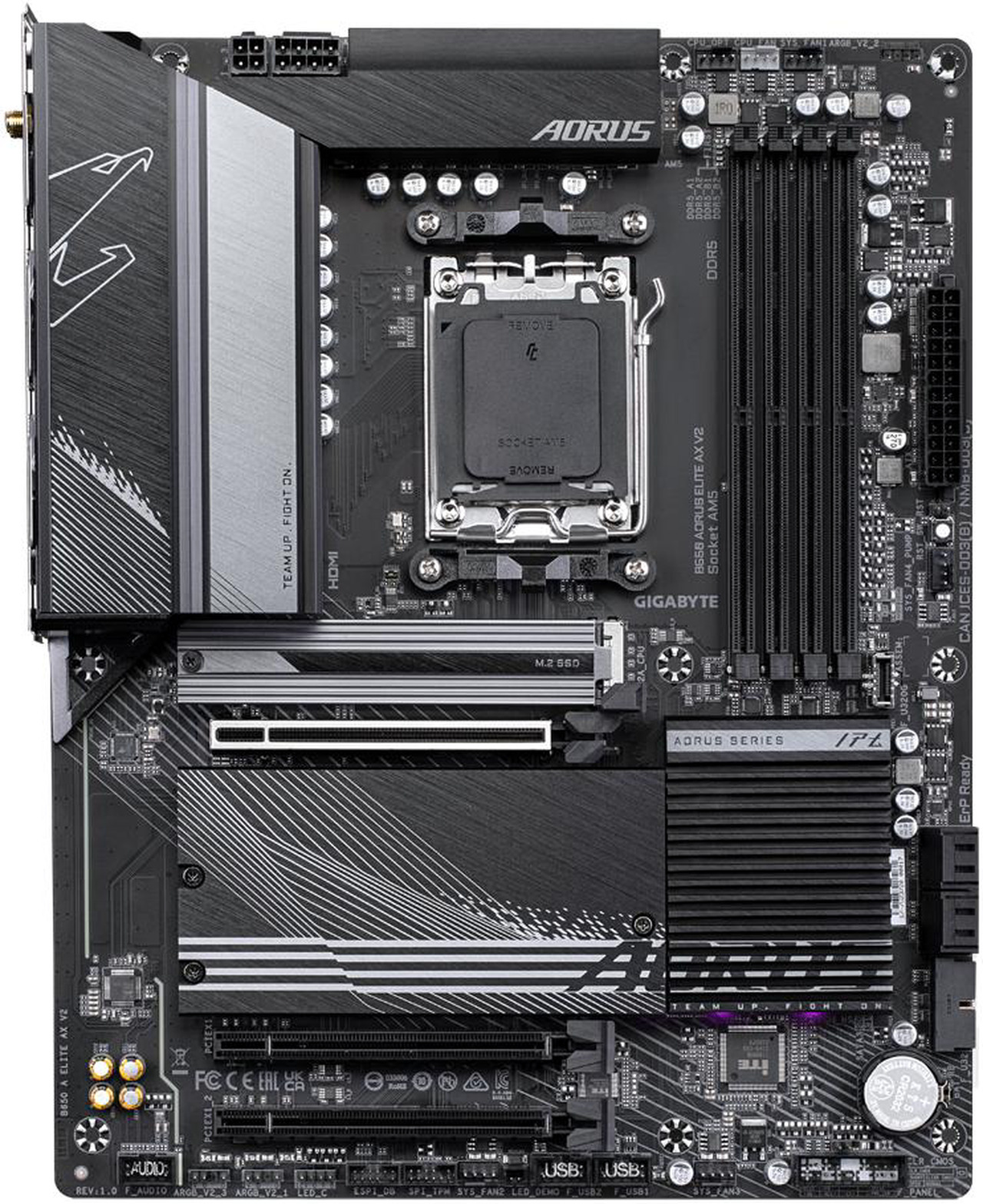

The Gigabyte B650 AORUS ELITE AX V2 is an ATX motherboard for AMD Ryzen 7000/8000/9000 Series processors on socket AM5 with the AMD B650 chipset. It supports 4x DDR5 DIMM slots up to 256 GB with OC speeds up to 8000 MT/s and includes Wi-Fi 6E with a 2T2R antenna. The primary PCIe slot runs at PCIe 4.0 x16 from the CPU, and rear outputs include DisplayPort and HDMI.
VAT inclusive
SKU: 02-03-00-00047
Warranty
Manufacturer limited warranty included. See product details for coverage length and terms.
Free Delivery
Easy Returns
Secure Payment
The Gigabyte B650 AORUS ELITE AX V2 is a full-size ATX motherboard built on the AMD B650 chipset with an AM5 socket, offering broad compatibility with AMD Ryzen 7000, 8000, and 9000 Series processors.
Four DDR5 DIMM slots accommodate up to 256 GB of system memory in dual-channel configuration, with overclocked speeds reaching 8000 MT/s. Each slot supports a maximum single-module capacity of 64 GB using non-ECC unbuffered modules.

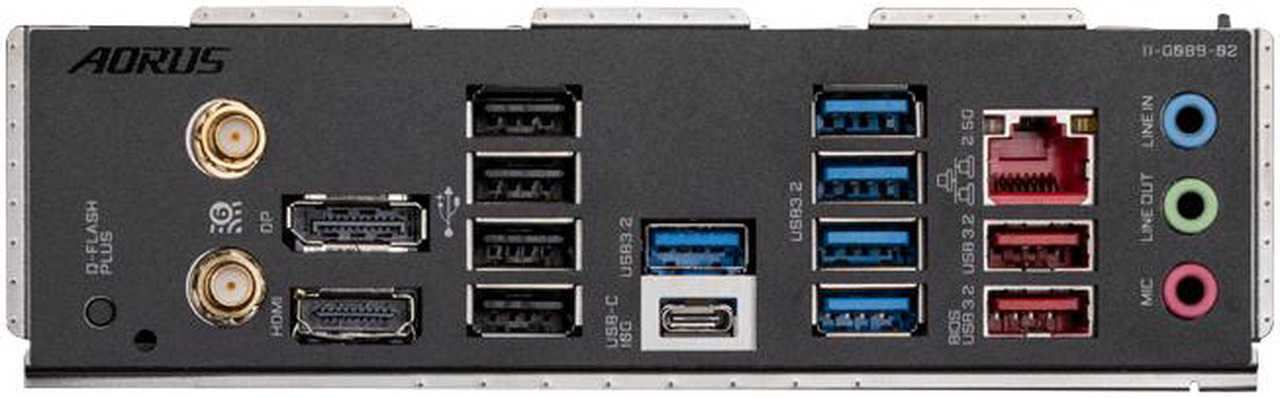

Expansion and connectivity are handled by a PCIe 4.0 x16 primary slot fed directly from the CPU, two additional PCIe 3.0 x1 slots from the chipset, and two M.2 slots for fast storage. Rear outputs include DisplayPort and HDMI for integrated graphics, alongside a comprehensive USB array featuring USB Type-C 3.2 Gen 2, multiple USB 3.2 Gen 2 and Gen 1 Type-A ports, and USB 2.0.
