SKU: 02-03-00-00045
Socket: AM5
Motherboard Chipset: AMD B650
Motherboard Form Factor: ATX
Memory Type: DDR5
Wi-Fi Standard: Wi-Fi 6E
PCIe Generation: PCIe 4.0
Memory Support: DDR5 8000(OC) down to 4400 MT/s, up to 256 GB
Memory Slots: 4
AMD B650 chipset, socket AM5
4x DDR5 DIMM up to 256 GB, OC up to 8000 MT/s
PCIe 4.0 x16 primary slot (from CPU)
4x M.2 slots
Wi-Fi 6E with 2T2R antenna
DisplayPort and HDMI rear outputs

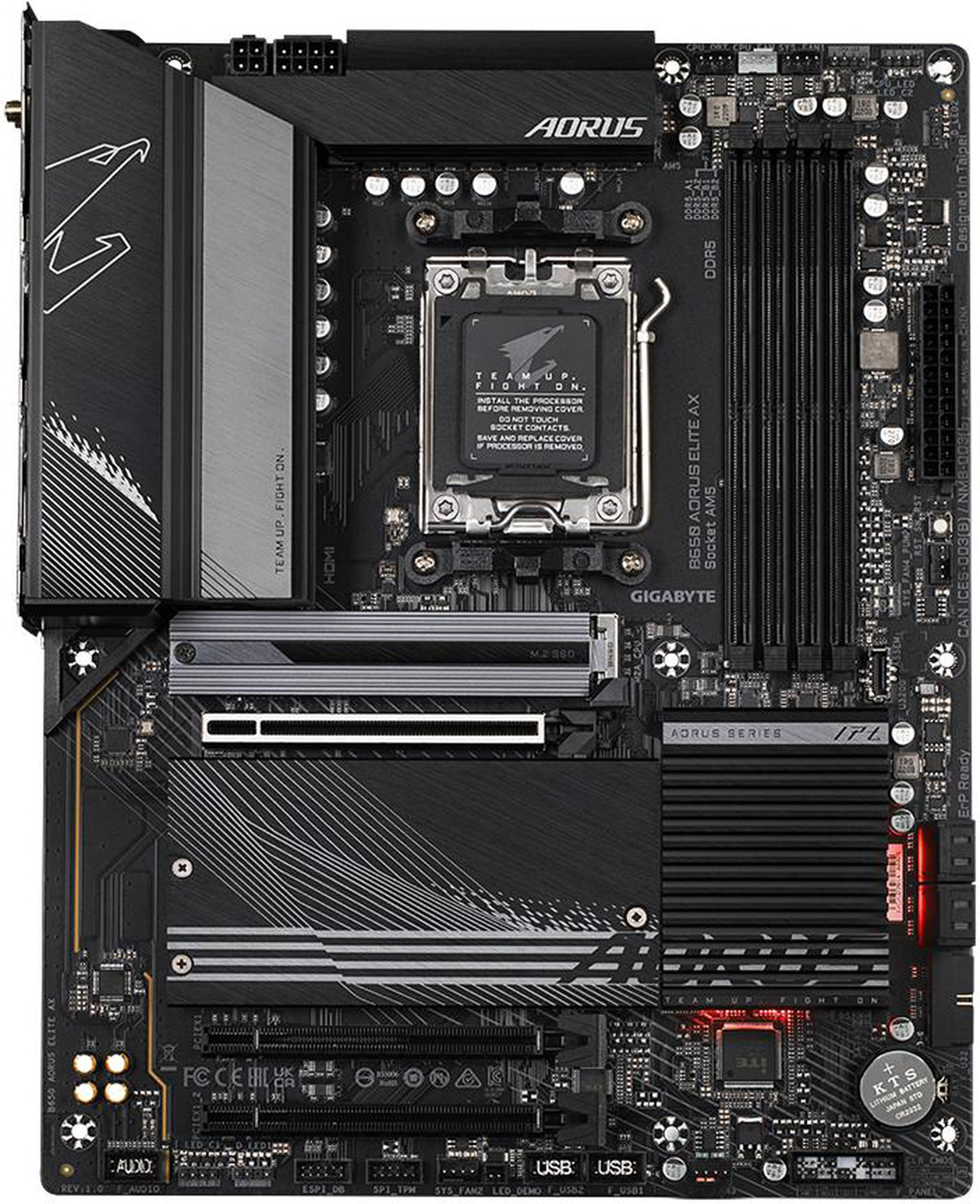

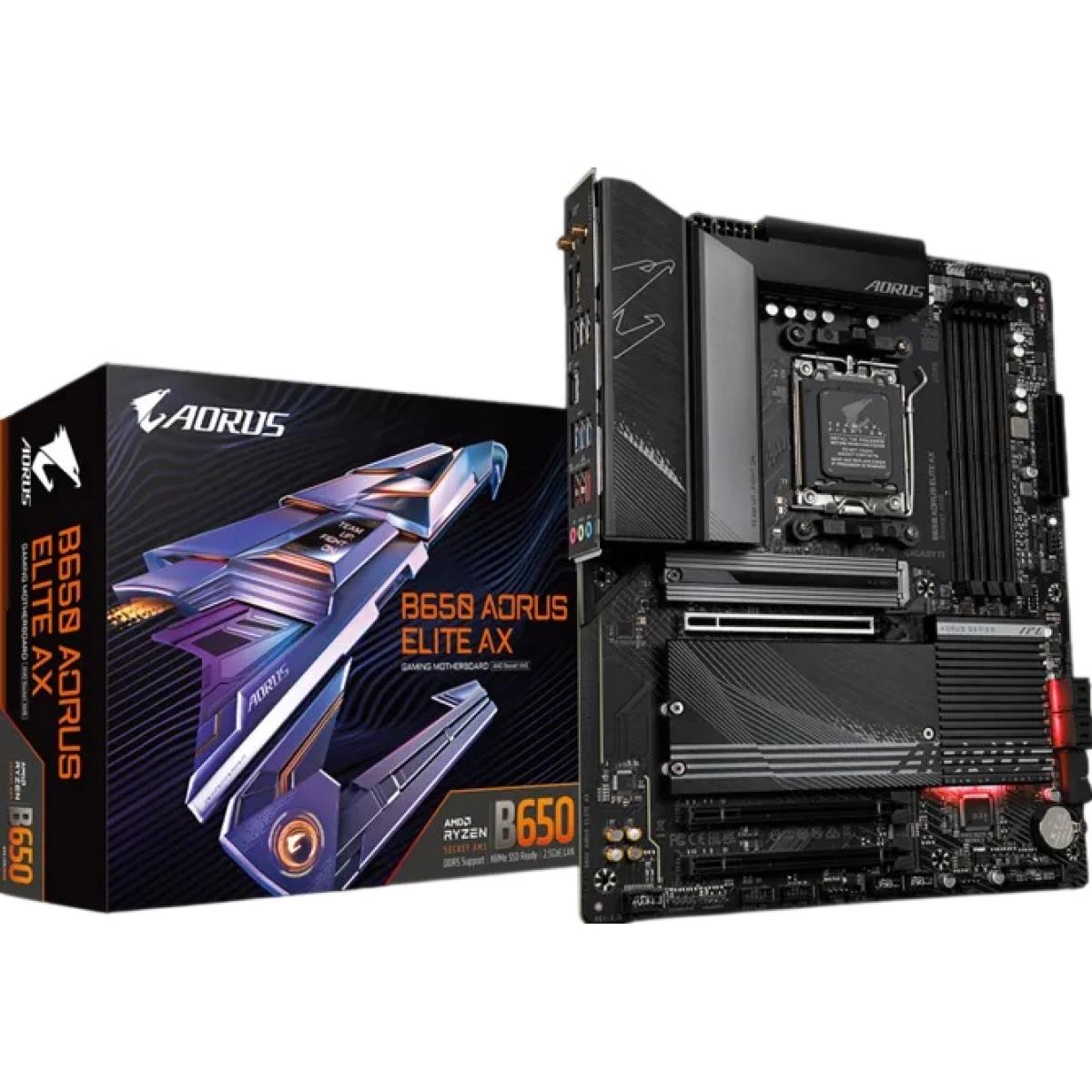

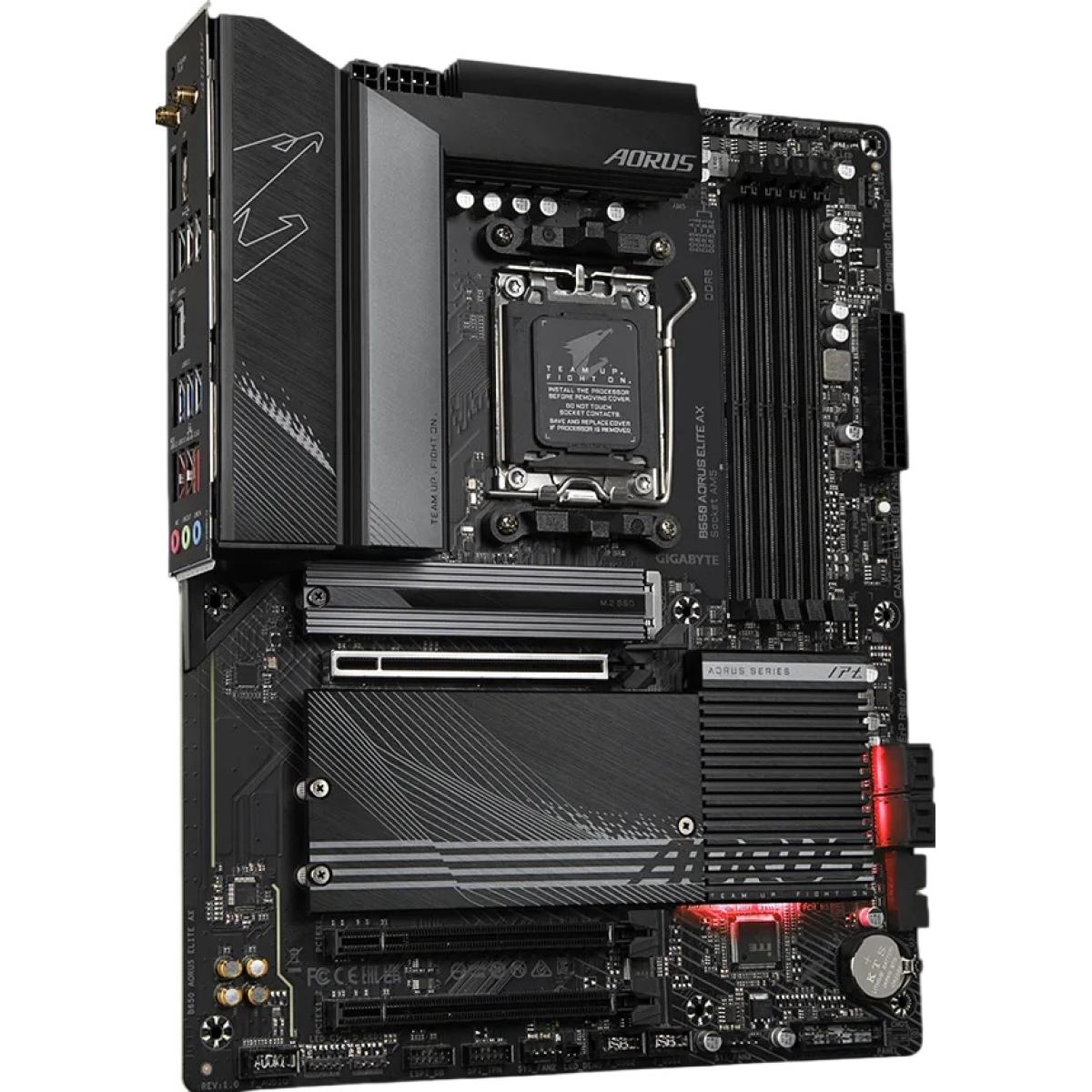

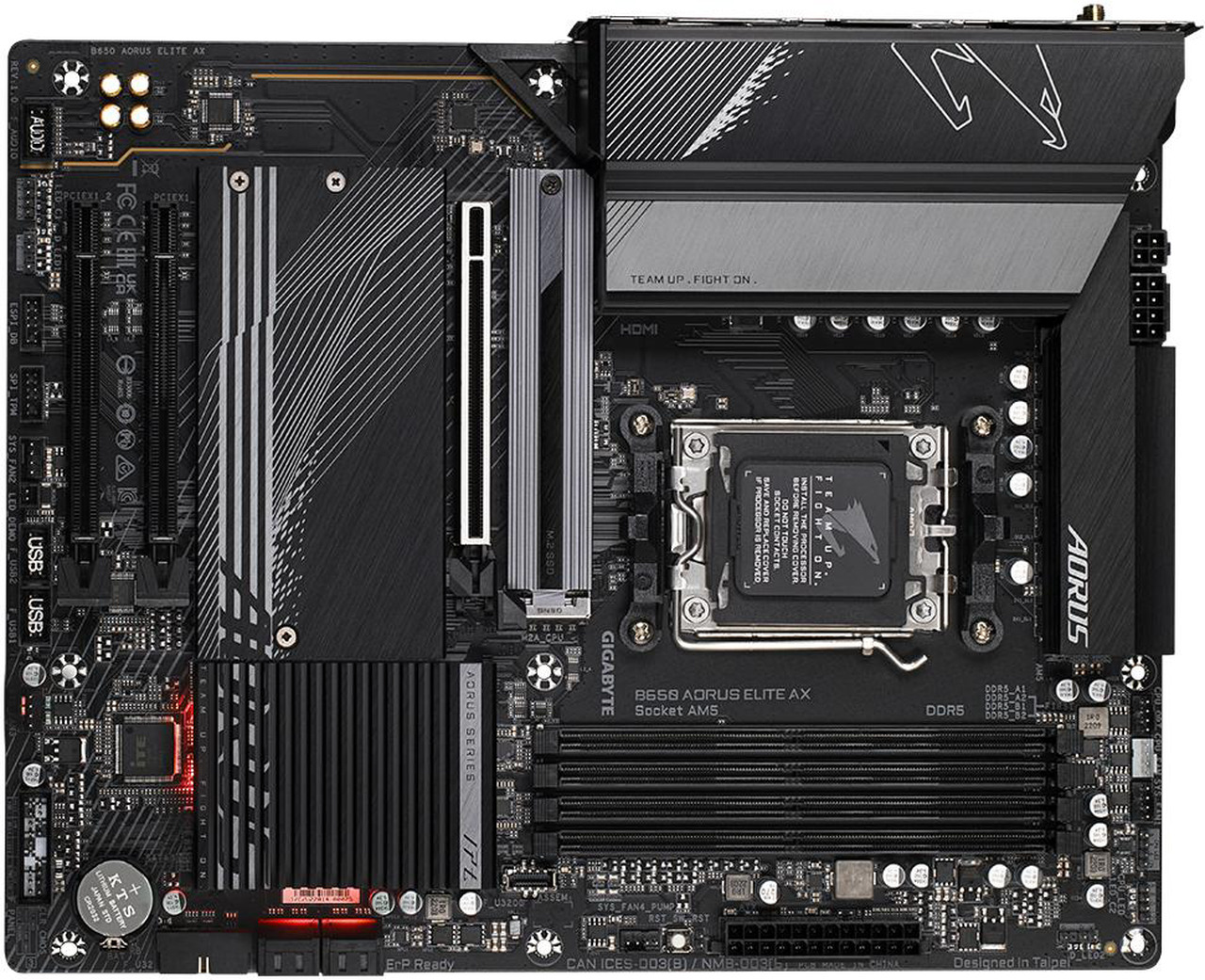

The Gigabyte B650 AORUS ELITE AX is an ATX motherboard supporting AMD Ryzen 7000/8000/9000 Series processors on socket AM5 with the AMD B650 chipset. It features 4x DDR5 DIMM slots with up to 256 GB and OC support up to 8000 MT/s, along with Wi-Fi 6E and a PCIe 4.0 x16 primary slot from the CPU. The rear panel provides DisplayPort, HDMI, USB 3.2 Gen 2 Type-C, and an RJ-45 port.
VAT inclusive
SKU: 02-03-00-00045
Warranty
Manufacturer limited warranty included. See product details for coverage length and terms.
Free Delivery
Easy Returns
Secure Payment
The Gigabyte B650 AORUS ELITE AX is a full ATX motherboard based on the AMD B650 chipset, supporting AMD Ryzen 7000, 8000, and 9000 Series processors on socket AM5. It combines a strong feature set with Wi-Fi 6E connectivity in an enthusiast AORUS design.
Four DDR5 DIMM slots in dual-channel configuration support up to 256 GB (64 GB per DIMM) of non-ECC unbuffered DDR5, with overclocking up to 8000 MT/s. The primary expansion slot is a PCIe 4.0 x16 lane sourced directly from the CPU, supplemented by two PCIe 3.0 x1 chipset slots.

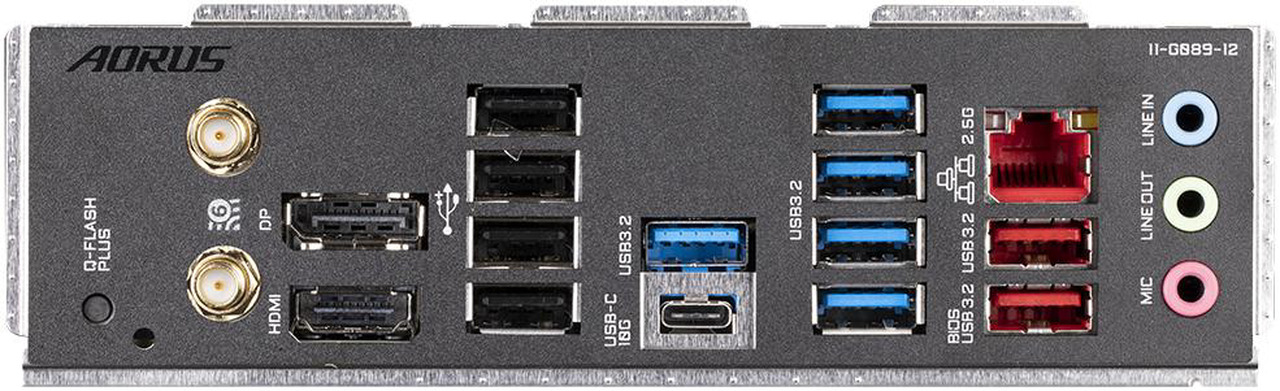

Rear USB ports include one USB 3.2 Gen 2 Type-C, two USB 3.2 Gen 2 Type-A, five USB 3.2 Gen 1, and four USB 2.0 ports, alongside a 1G RJ-45 LAN port.
