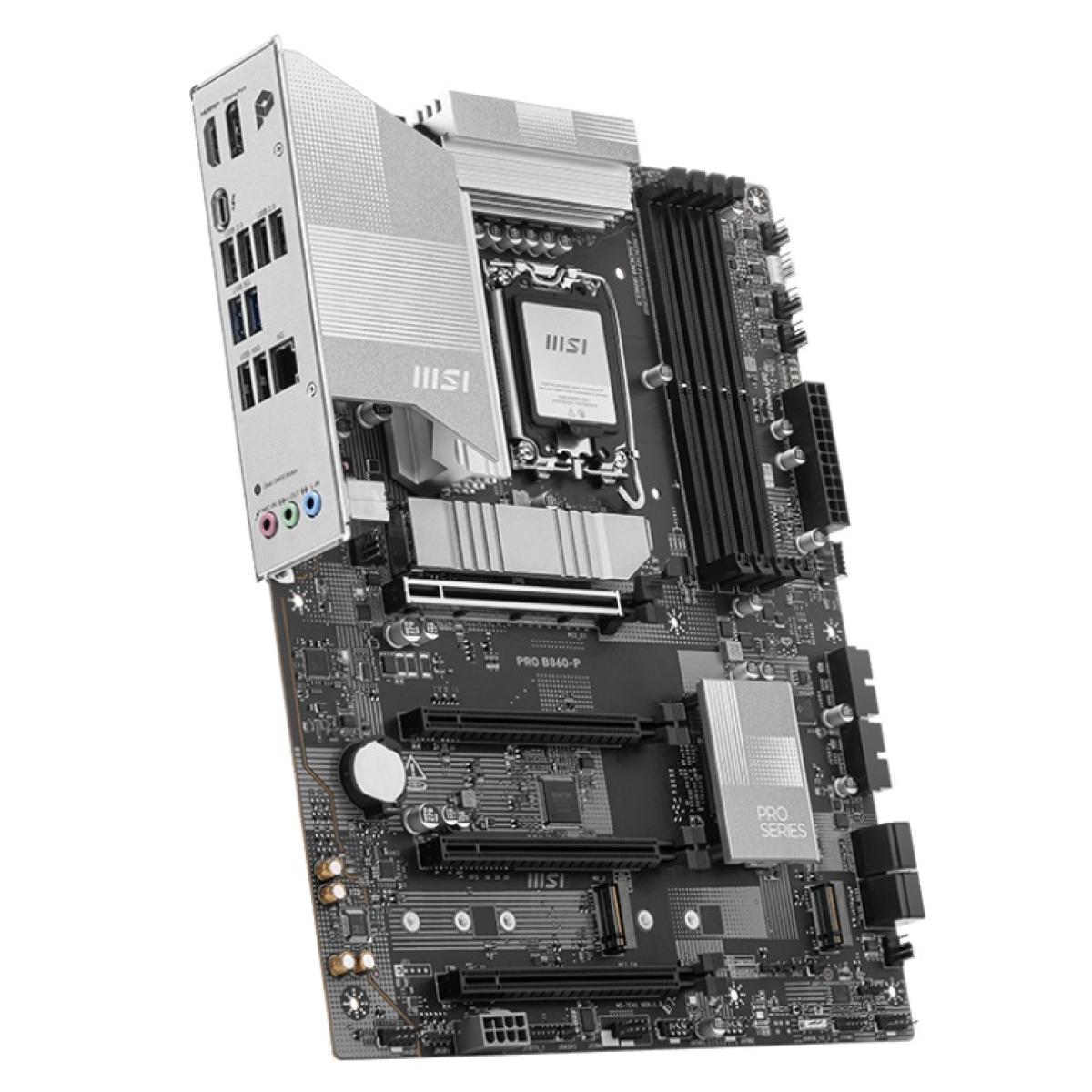

MSI PRO B860-P LGA1851 ATX Motherboard DDR5 PCIe 5.0 Thunderbolt 4

SKU: 02-03-00-00048

In Stock

Socket: LGA1851
Motherboard Chipset: Intel B860
Motherboard Form Factor: ATX
Memory Type: DDR5
PCIe Generation: PCIe 5.0
Memory Support: DDR5 up to 256GB, 8600+ MT/s (OC), UDIMM
Memory Slots: 4
M.2 Slots: Yes

Intel B860 chipset, LGA 1851, supports Intel Core Ultra Series 2
4x DDR5 UDIMM, up to 256GB, 8600+ MT/s (OC)
PCIe 5.0 x16 primary slot from CPU
Thunderbolt 4 40Gbps Type-C rear port
5G LAN onboard
HDMI and DisplayPort video outputs

ATX motherboard based on the Intel B860 chipset with LGA 1851 socket support for Intel Core Ultra Series 2 processors. Four DDR5 UDIMM slots support up to 256GB at up to 8600+ MT/s (OC). Rear I/O includes Thunderbolt 4 40Gbps Type-C, 5G LAN, USB 10Gbps Type-A, HDMI, and DisplayPort.

Visit the MSI Store

In Stock

د.أ 145

VAT inclusive

SKU: 02-03-00-00048

Warranty

Manufacturer limited warranty included. See product details for coverage length and terms.

Free Delivery

Easy Returns

Secure Payment

Product Overview

MSI PRO B860-P — ATX Motherboard for Intel Core Ultra Series 2

The MSI PRO B860-P is a full-size ATX motherboard built on the Intel B860 chipset with an LGA 1851 socket, designed to support Intel Core Ultra Series 2 processors.

Four DDR5 UDIMM slots provide up to 256 GB of memory capacity, with JEDEC speeds from 4800 to 6400 MT/s and overclocked profiles reaching 8600+ MT/s. The primary expansion slot runs at PCIe 5.0 x16 directly from the CPU, while additional chipset slots include a PCIe 4.0 x4 and two PCIe 4.0 x1 lanes.

Rear I/O highlights include a Thunderbolt 4 40 Gbps Type-C port, 5G LAN, USB 10 Gbps Type-A, HDMI, and DisplayPort, making this board well-suited for high-bandwidth peripherals and multi-display setups.

Chipset / Socket: Intel B860 / LGA 1851
Memory: 4x DDR5 UDIMM, up to 256 GB, OC up to 8600+ MT/s
Primary PCIe slot: PCIe 5.0 x16 (CPU)
Networking: 5G LAN onboard
Thunderbolt 4: 40 Gbps Type-C rear port
Video outputs: HDMI + DisplayPort

Specifications

Socket: LGA1851
Motherboard Chipset: Intel B860
Motherboard Form Factor: ATX
Memory Type: DDR5
PCIe Generation: PCIe 5.0
Memory Support: DDR5 up to 256GB, 8600+ MT/s (OC), UDIMM
Memory Slots: 4
M.2 Slots: Yes
LAN: 5G LAN
Supported Processors: Intel Core Ultra Series 2, LGA 1851
Memory Speed: DDR5 8600–6400 (OC) / 6400–4800 (JEDEC) MT/s
PCIe Slots: 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (Chipset), 2x PCIe 4.0 x1 (Chipset)
Thunderbolt: Thunderbolt 4 40Gbps (Type-C)
USB Ports (Rear): 1x USB 10Gbps (Type-A), 1x USB 5Gbps (Type-A), 1x USB 2.0 (Type-A)
