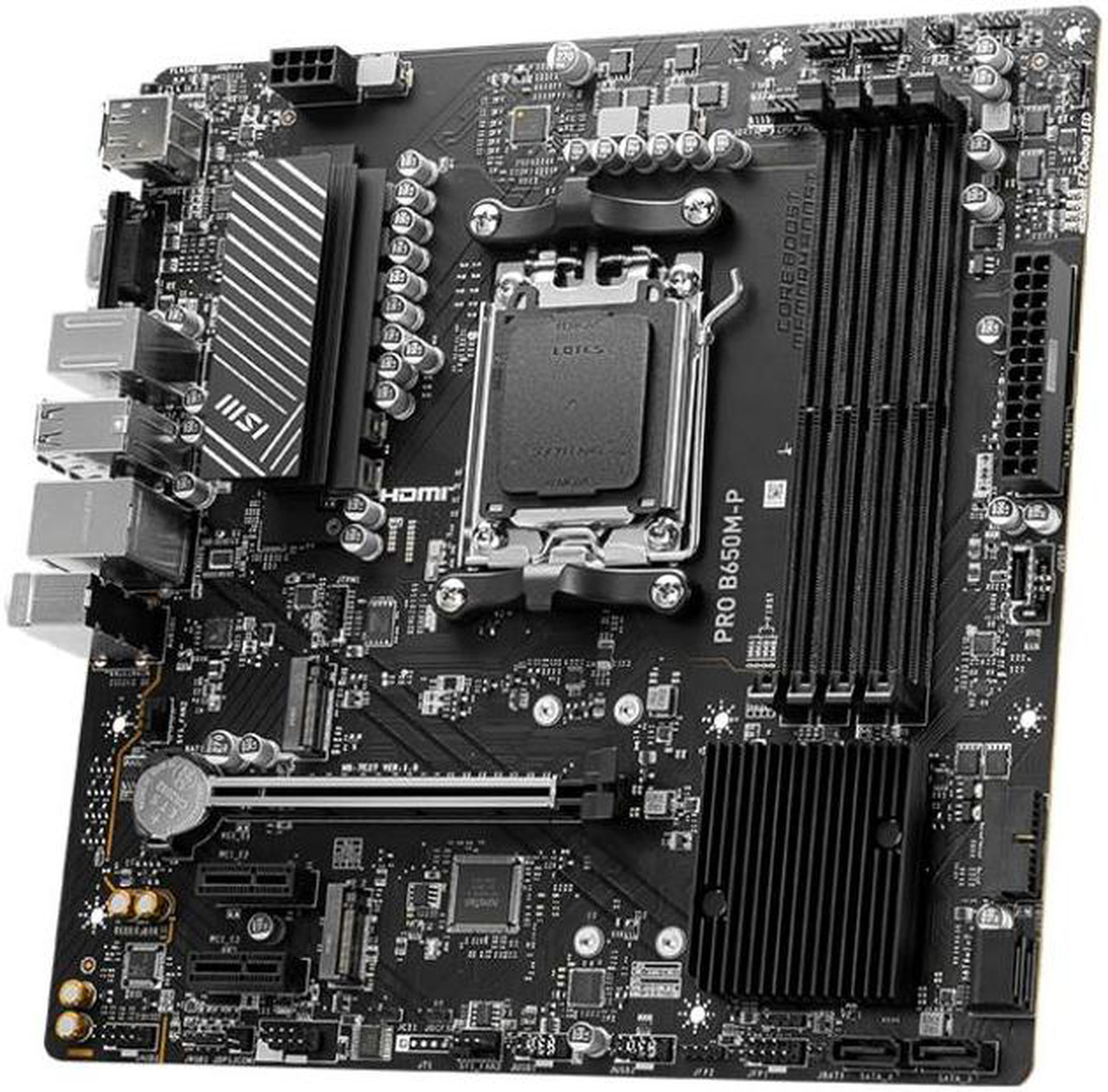

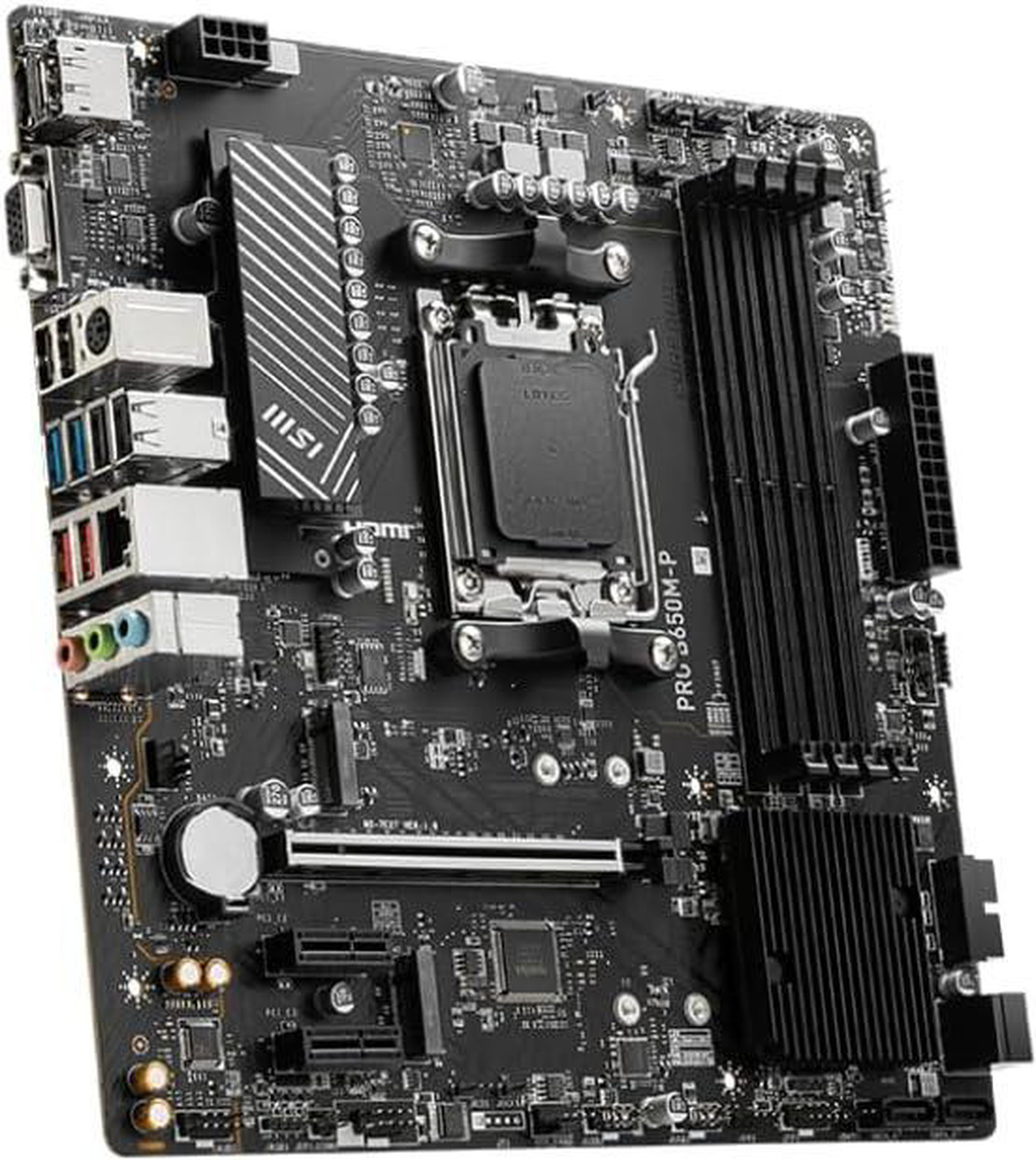

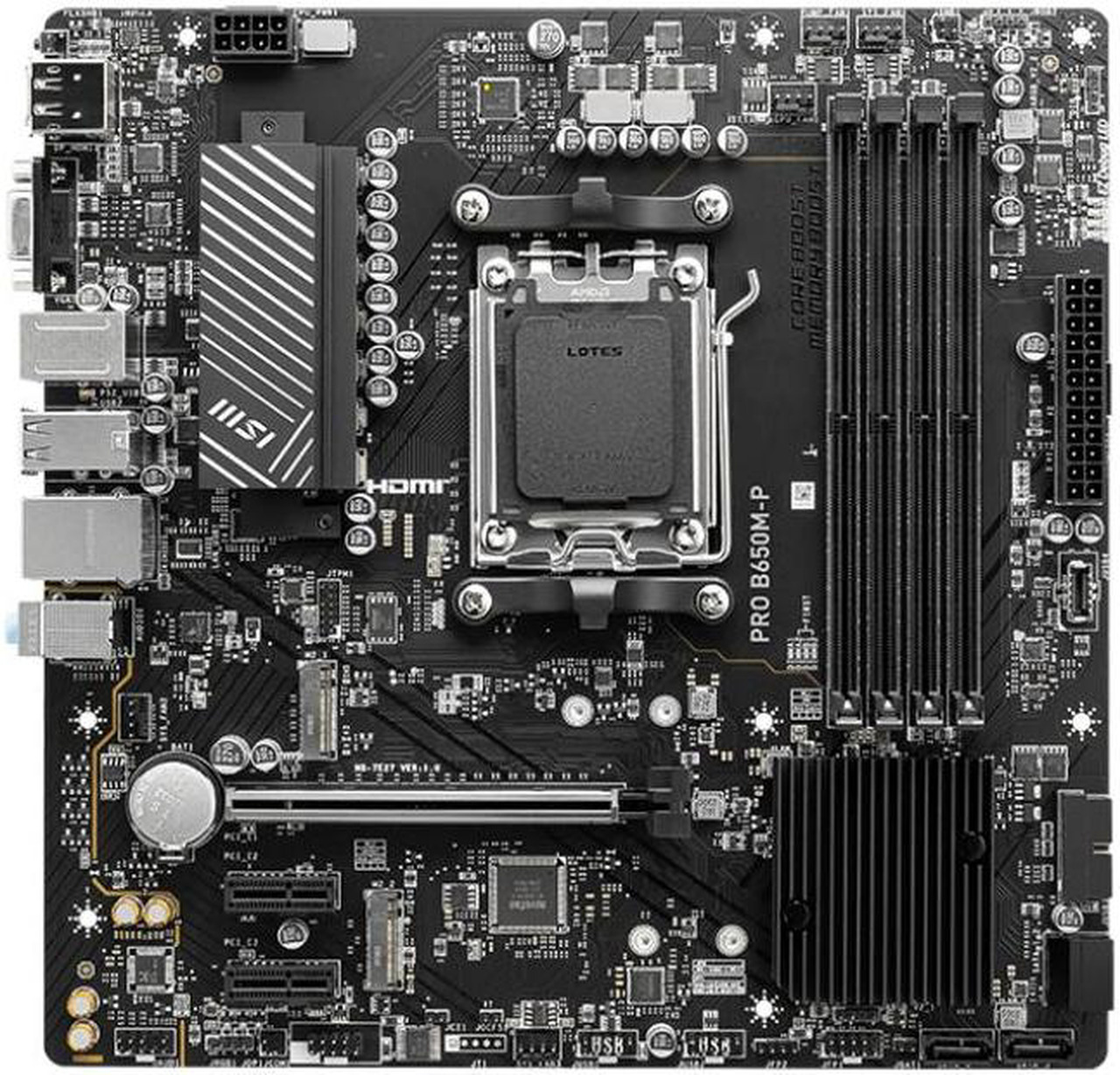

MSI PRO B650M-P Micro-ATX Motherboard AM5 DDR5 PCIe 4.0

SKU: 02-03-00-00054

In Stock

Socket: AM5
Motherboard Chipset: AMD B650
Motherboard Form Factor: Micro-ATX
Memory Type: DDR5
PCIe Generation: PCIe 4.0
Memory Support: 4x DDR5 DIMM, up to 192GB, DDR5 4800–6000+(OC)
Memory Slots: 4
M.2 Slots: Yes

AMD B650 chipset, AM5 socket
4x DDR5 DIMM, up to 192GB, DDR5 6000+(OC)
PCIe 4.0 x16 primary slot
2.5G LAN

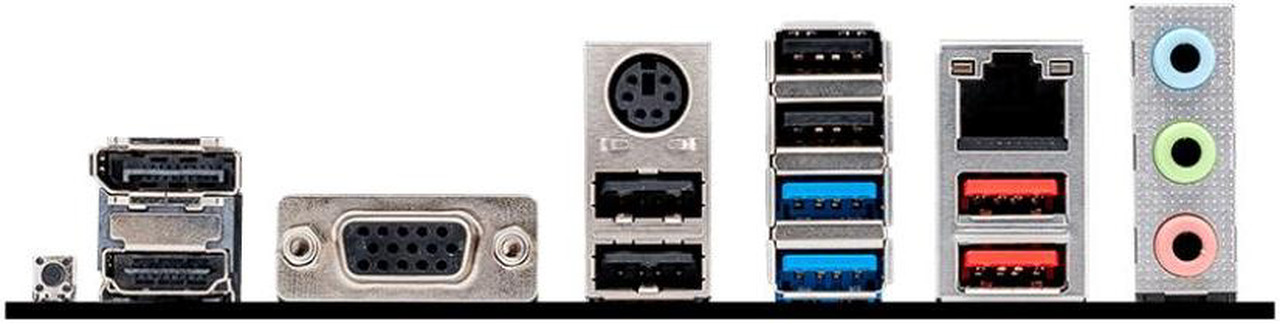

DisplayPort + VGA + HDMI rear video outputs
Flash BIOS Button

Micro-ATX motherboard on the AMD B650 chipset supporting AMD Ryzen 7000 Series processors on the AM5 socket. Four DDR5 DIMM slots accommodate up to 192GB with speeds up to DDR5 6000+(OC). Rear I/O includes a PCIe 4.0 x16 slot, two M.2 slots, 2.5G LAN, DisplayPort, VGA, and HDMI outputs.

Visit the MSI Store

In Stock

د.أ 105

VAT inclusive

SKU: 02-03-00-00054

Warranty

Manufacturer limited warranty included. See product details for coverage length and terms.

Free Delivery

Easy Returns

Secure Payment

Product Overview

MSI PRO B650M-P Micro-ATX Motherboard AM5 DDR5 PCIe 4.0

The MSI PRO B650M-P is a compact Micro-ATX motherboard built on the AMD B650 chipset, supporting AMD Ryzen 7000 Series processors via the AM5 socket. Its smaller form factor makes it well-suited for space-efficient builds.

Four DDR5 DIMM slots support up to 192GB of DDR5 memory at speeds from 4800(JEDEC) up to DDR5 6000+(OC). The primary expansion slot is a PCIe 4.0 x16, and the board includes two M.2 slots for fast NVMe storage alongside two PCIe 3.0 x1 slots.

Networking is covered by a 2.5G LAN port. The rear I/O offers three video outputs—DisplayPort, VGA, and HDMI—and includes a Flash BIOS Button for easy firmware updates.
