Lian Li O11D Distro-Plate G1 Designed by EKWB D-RGB DDC 3.1 PWM

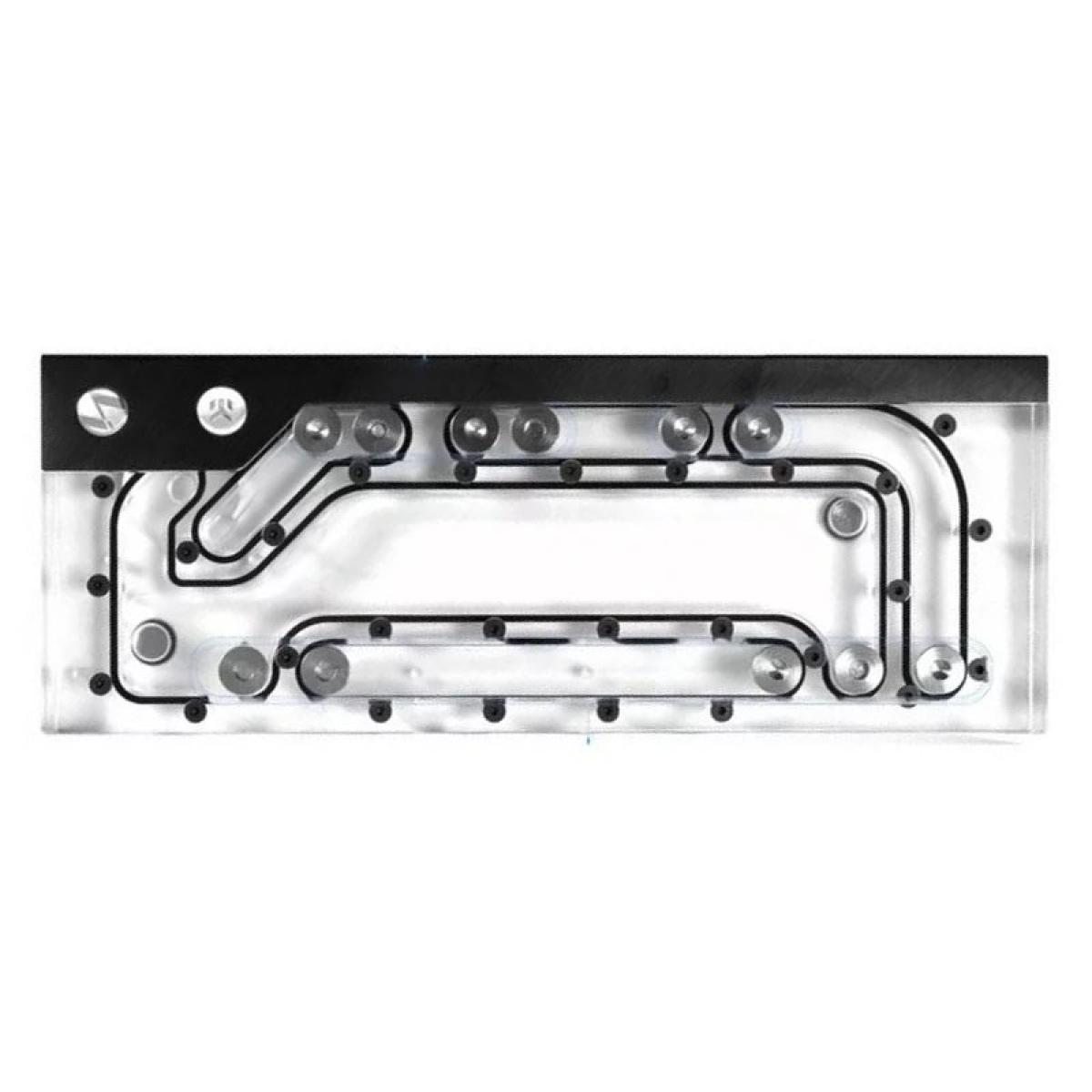

The Lian Li O11D Distro-Plate G1, designed in collaboration with EKWB, is an all-in-one distribution plate and integrated pump unit engineered for the O11 Dynamic and O11 Dynamic XL cases. Its acrylic body measures 131 × 345 × 50mm and houses a DDC 3.1 electronically commuted motor pump rated at 12V DC, delivering up to 500 L/h flow and a 2.6m maximum pressure head at just 6W power consumption.

The plate supports up to 1 CPU block, 2 GPU blocks, and dual radiators up to 2 × 360mm (maximum 60mm thick), providing exceptional flexibility for high-performance custom loops. All ports use standard G1/4 threads, and M4 mounting hardware is included.

Integrated D-RGB (Addressable RGB) lighting features an 18-LED ARGB strip connected via a 4-pin PWM connector, with a PWM duty cycle range of approximately 20–100% and a 50cm cable length. The unit operates safely within an ambient temperature range of 10–50°C and a maximum fluid temperature of 60°C.

• DDC 3.1 pump: 500 L/h max flow, 2.6m max pressure head, 6W
• 18-LED ARGB strip with 4-pin PWM connector, 50cm cable
• Supports 1 CPU block and up to 2 GPU blocks
• Dual radiator support up to 2 × 360mm (max 60mm thick)
• G1/4 port threads, M4 mounting hardware included
• Compatible with O11D and O11D XL cases only
