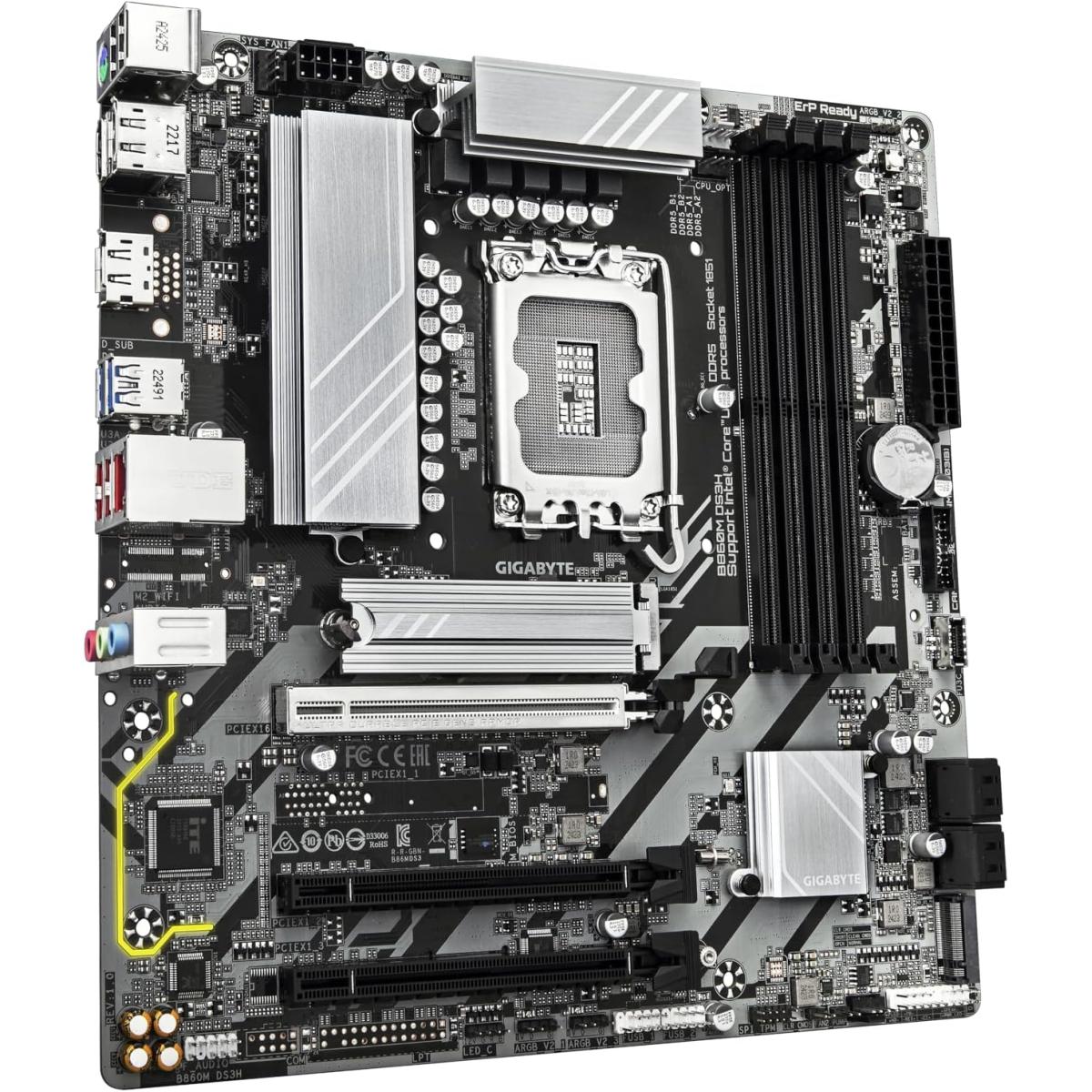

Gigabyte B860M DS3H LGA1851 DDR5 PCIe 5.0 Micro-ATX Motherboard

SKU: 02-03-00-00002

In Stock

Socket: LGA1851
Motherboard Chipset: Intel B860
Motherboard Form Factor: Micro-ATX
Memory Type: DDR5
PCIe Generation: PCIe 5.0
Memory Support: DDR5 up to 256 GB, 4 DIMM slots, up to 9066 MT/s (O.C.)
Memory Slots: 4
M.2 Slots: Yes

Intel B860 chipset, LGA1851 socket for Core Ultra Series 2
4x DDR5 DIMM up to 256 GB, up to 9066 MT/s (O.C.)
PCIe 5.0 x16 primary slot
2x M.2 slots
HDMI + 2x DisplayPort video outputs
USB 3.2 Gen 2 Type-A rear port

The Gigabyte B860M DS3H is a Micro-ATX motherboard built on the Intel B860 chipset for Intel Core Ultra Series 2 processors on the LGA1851 socket. It supports up to 256 GB of DDR5 memory across four DIMM slots with speeds up to 9066 MT/s (O.C.), and features a PCIe 5.0 x16 primary slot for graphics. Rear I/O includes HDMI, two DisplayPorts, USB 3.2 Gen 2, and a 1 Gb RJ-45 port.

Visit the Gigabyte Store

In Stock

د.أ 122

VAT inclusive

SKU: 02-03-00-00002

Warranty

Manufacturer limited warranty included. See product details for coverage length and terms.

Free Delivery

Easy Returns

Secure Payment

Product Overview

Gigabyte B860M DS3H Micro-ATX Motherboard — LGA1851, DDR5, PCIe 5.0

The Gigabyte B860M DS3H is a Micro-ATX motherboard built on the Intel B860 chipset, designed for Intel Core Ultra Series 2 processors in the LGA1851 socket. Its compact form factor makes it an excellent foundation for space-efficient desktop builds.

Four DDR5 DIMM slots support up to 256 GB of memory with speeds reaching 9066 MT/s (O.C.), with native speeds of 6400 / 5600 MT/s. The primary expansion slot is a PCIe 5.0 x16 for the graphics card, complemented by two PCIe 4.0 x1 slots and two M.2 slots for storage.

Intel B860 chipset, LGA1851 socket
4x DDR5 DIMM, up to 256 GB, up to 9066 MT/s (O.C.)
1x PCIe 5.0 x16 + 2x PCIe 4.0 x1 expansion slots
2x M.2 slots
Rear I/O: 1x HDMI, 2x DisplayPort, 1x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1, 3x USB 2.0
1x RJ-45 Gigabit LAN, 1x PS/2, 3x audio jacks

Specifications

Socket: LGA1851
Motherboard Chipset: Intel B860
Motherboard Form Factor: Micro-ATX
Memory Type: DDR5
PCIe Generation: PCIe 5.0
Memory Support: DDR5 up to 256 GB, 4 DIMM slots, up to 9066 MT/s (O.C.)
Memory Slots: 4
M.2 Slots: Yes
LAN: 1x RJ-45
Supported Processors: Intel Core Ultra Series 2 (LGA1851)
Memory Bus Speed: DDR5 up to 9066 MT/s (O.C.), native 6400 / 5600 MT/s
Expansion Slots: 1x PCIe 5.0 x16 (CPU), 2x PCIe 4.0 x1 (Chipset)
Rear Ports: 1x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1, 3x USB 2.0, 1x HDMI, 2x DisplayPort, 1x RJ-45, 1x PS/2, 3x audio jacks
