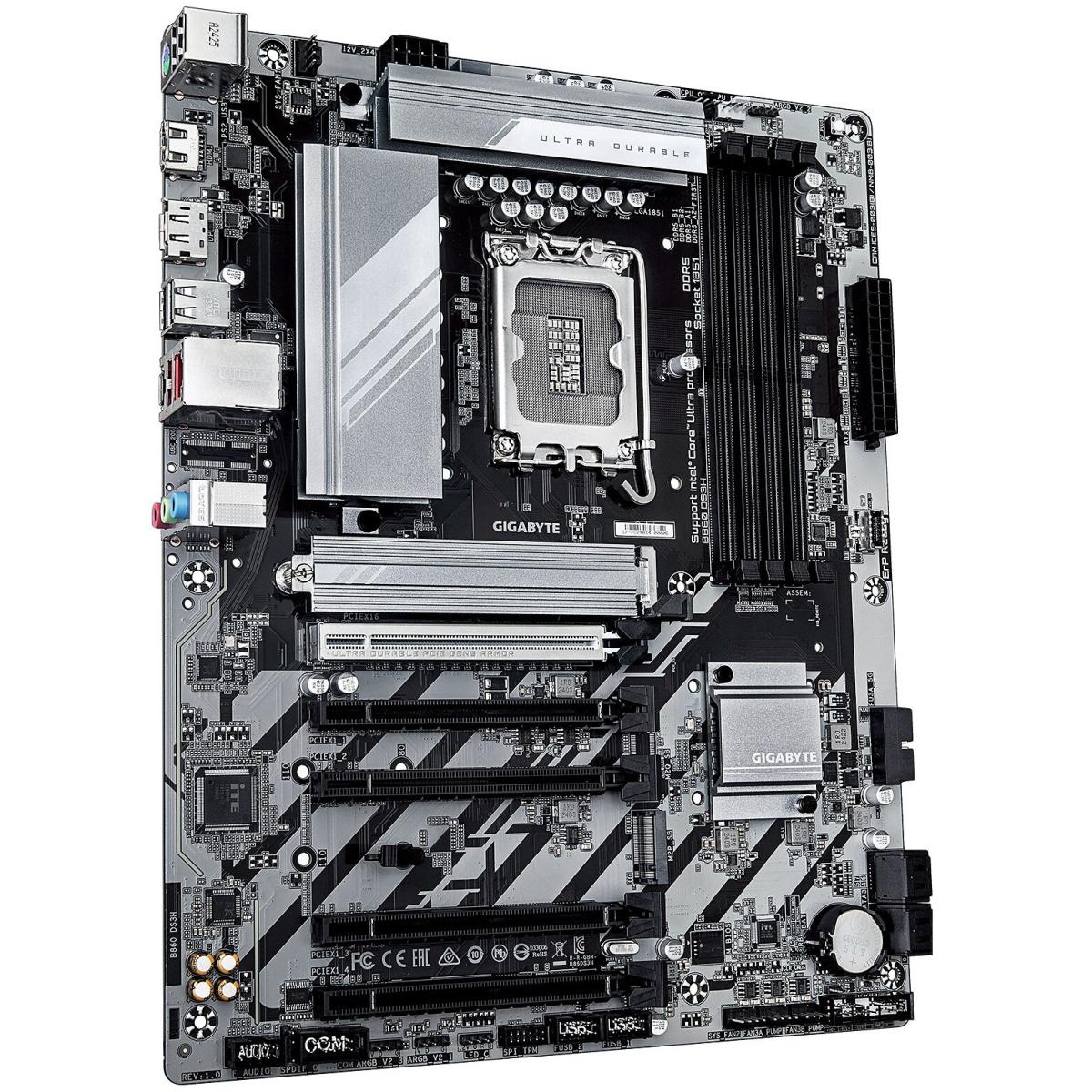

Gigabyte B860 DS3H LGA1851 DDR5 PCIe 5.0 ATX Motherboard

SKU: 02-03-00-00001

In Stock

Socket: LGA1851
Motherboard Chipset: Intel B860
Motherboard Form Factor: ATX
Memory Type: DDR5
Wi-Fi Standard: Wi-Fi 6
PCIe Generation: PCIe 5.0
Memory Support: DDR5 up to 256 GB, 4 DIMM slots, up to 9066 MT/s (O.C.)
Memory Slots: 4

Intel B860 chipset, LGA1851 socket for Core Ultra Series 2
4x DDR5 DIMM up to 256 GB, up to 9066 MT/s (O.C.)
PCIe 5.0 x16 primary slot
2x M.2 slots
USB 3.2 Gen 2x2 Type-C rear port
HDMI + DisplayPort video outputs

The Gigabyte B860 DS3H is an ATX motherboard on the Intel B860 chipset supporting Intel Core Ultra Series 2 processors in the LGA1851 socket. Four DDR5 DIMM slots handle up to 256 GB at speeds reaching 9066 MT/s (O.C.), and a PCIe 5.0 x16 slot serves the primary GPU. Rear I/O includes HDMI, DisplayPort, USB 3.2 Gen 2x2 Type-C, and onboard Wi-Fi antenna connectors indicating wireless connectivity.

Visit the Gigabyte Store

In Stock

د.أ 132

VAT inclusive

SKU: 02-03-00-00001

Warranty

Manufacturer limited warranty included. See product details for coverage length and terms.

Free Delivery

Easy Returns

Secure Payment

Product Overview

Gigabyte B860 DS3H ATX Motherboard — LGA1851, DDR5, PCIe 5.0, Wi-Fi 6

The Gigabyte B860 DS3H is a full-size ATX motherboard powered by the Intel B860 chipset, supporting Intel Core Ultra Series 2 processors in the LGA1851 socket. It accommodates up to 256 GB of DDR5 memory across four DIMM slots at speeds up to 9066 MT/s (O.C.), with native support for 6400 / 5600 MT/s.

The primary GPU connects via a PCIe 5.0 x16 slot, with four additional PCIe 4.0 x1 slots for expansion. Two M.2 slots are available for high-speed storage. The board also integrates Wi-Fi 6, with antenna connectors on the rear panel.

Intel B860 chipset, LGA1851 socket
4x DDR5 DIMM, up to 256 GB, up to 9066 MT/s (O.C.)
1x PCIe 5.0 x16 + 4x PCIe 4.0 x1 expansion slots
2x M.2 slots
Wi-Fi 6 with rear antenna connectors
Rear I/O: 1x HDMI, 1x DisplayPort, 1x USB 3.2 Gen 2x2 Type-C, 1x USB 3.2 Gen 2 Type-A, 4x USB 2.0, 1x RJ-45

Specifications

Socket: LGA1851
Motherboard Chipset: Intel B860
Motherboard Form Factor: ATX
Memory Type: DDR5
Wi-Fi Standard: Wi-Fi 6
PCIe Generation: PCIe 5.0
Memory Support: DDR5 up to 256 GB, 4 DIMM slots, up to 9066 MT/s (O.C.)
Memory Slots: 4
M.2 Slots: Yes
LAN: 1x RJ-45
Supported Processors: Intel Core Ultra Series 2 (LGA1851)
Memory Bus Speed: DDR5 up to 9066 MT/s (O.C.), native 6400 / 5600 MT/s
Expansion Slots: 1x PCIe 5.0 x16 (CPU), 4x PCIe 4.0 x1 (Chipset)
Rear Ports: 1x USB 3.2 Gen 2x2 Type-C, 1x USB 3.2 Gen 2 Type-A, 4x USB 2.0, 1x HDMI, 1x DisplayPort, 1x RJ-45, 2x antenna connectors, 3x audio jacks
