ASUS TUF Gaming X870-PLUS WIFI AM5 ATX Motherboard DDR5 PCIe 5.0 Wi-Fi 7

SKU: 02-03-00-00026

In Stock

Socket: AM5
Motherboard Chipset: AMD X870
Motherboard Form Factor: ATX
Memory Type: DDR5
Wi-Fi Standard: Wi-Fi 7
PCIe Generation: PCIe 5.0
Memory Support: DDR5 up to 256GB, 8000+ MT/s (OC), ECC & Non-ECC, EXPO, AEMP
Memory Slots: 4

AMD X870 chipset, AM5 socket, supports Ryzen 7000/8000/9000
4x DDR5 DIMM, up to 256GB, 8000+ MT/s (OC), EXPO & AEMP support
PCIe 5.0 x16 slot (Ryzen 9000/7000) and PCIe 4.0 x16 slot (chipset)
Wi-Fi 7 and Realtek 2.5Gb Ethernet
2x USB4 40Gbps Type-C, 3x USB 10Gbps Type-A rear I/O
BIOS FlashBack button, HDMI output

ATX gaming motherboard on the AMD X870 chipset with AM5 socket support for Ryzen 7000, 8000, and 9000 series processors. Four DDR5 DIMM slots support up to 256GB at up to 8000+ MT/s (OC) with EXPO and AEMP profiles. Rear I/O features two USB4 40Gbps Type-C ports, Wi-Fi 7, Realtek 2.5Gb LAN, and a PCIe 5.0 x16 slot for discrete graphics.

Visit the ASUS Store

Low Stock

د.أ 259

VAT inclusive

SKU: 02-03-00-00026

Warranty

Manufacturer limited warranty included. See product details for coverage length and terms.

Free Delivery

Easy Returns

Secure Payment

Product Overview

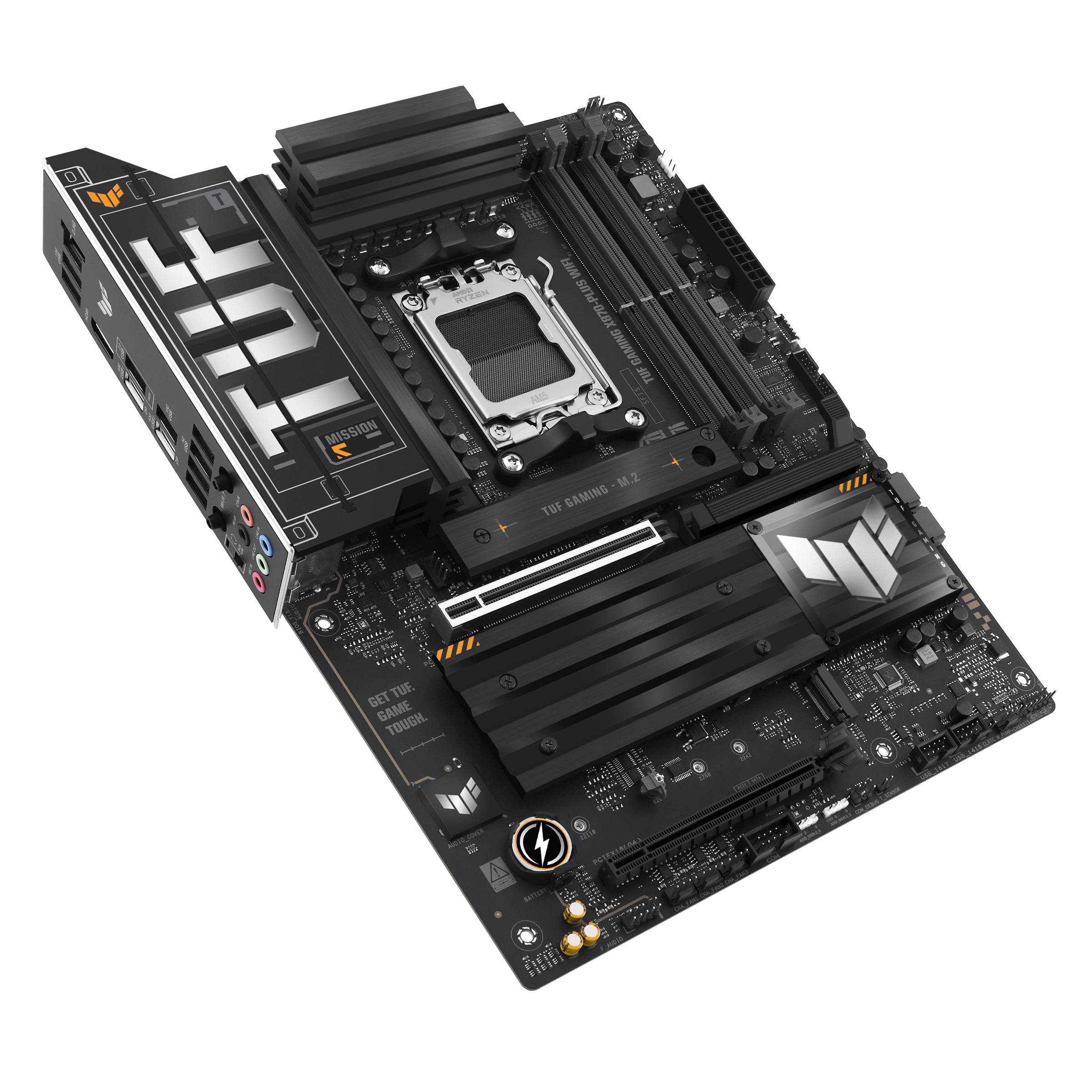

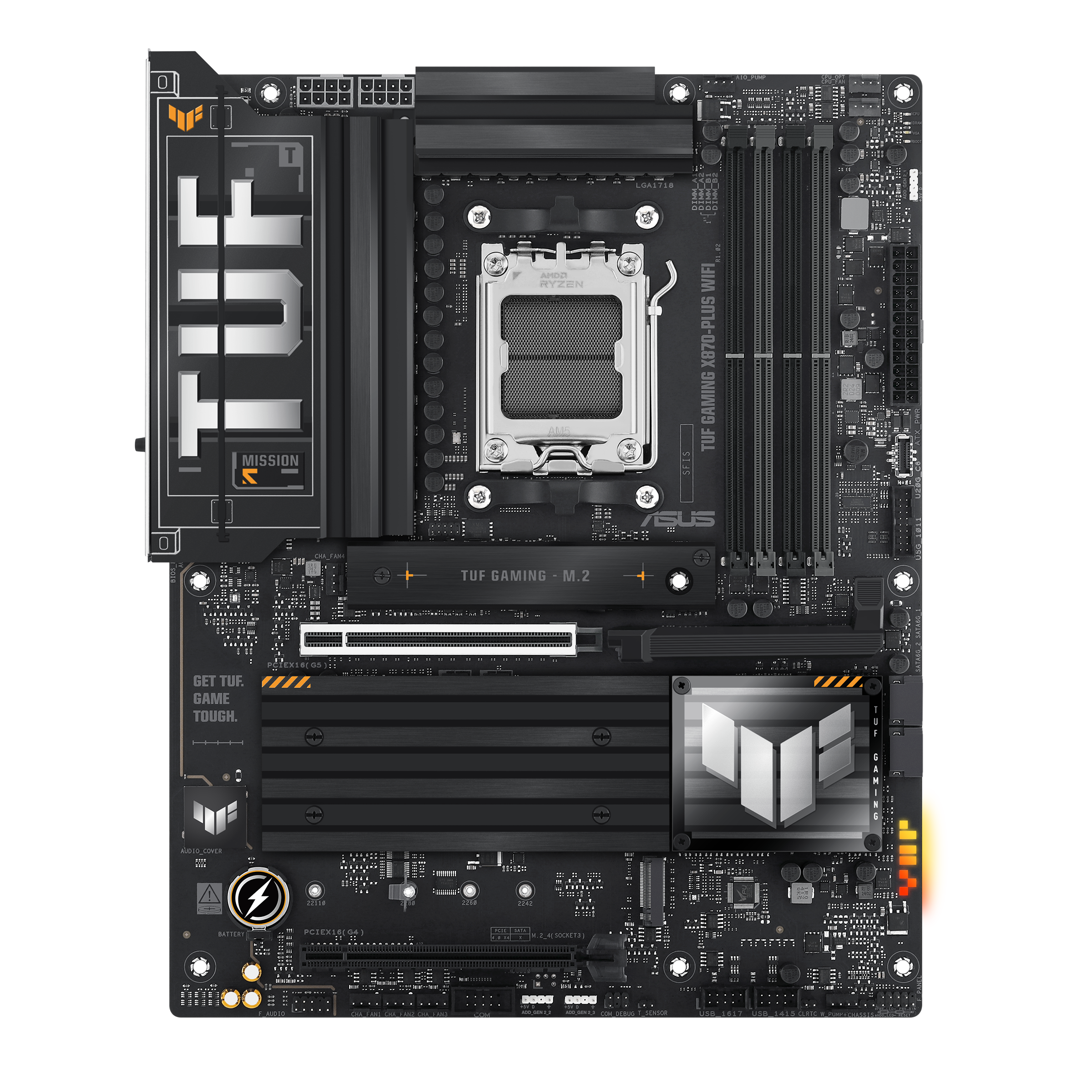

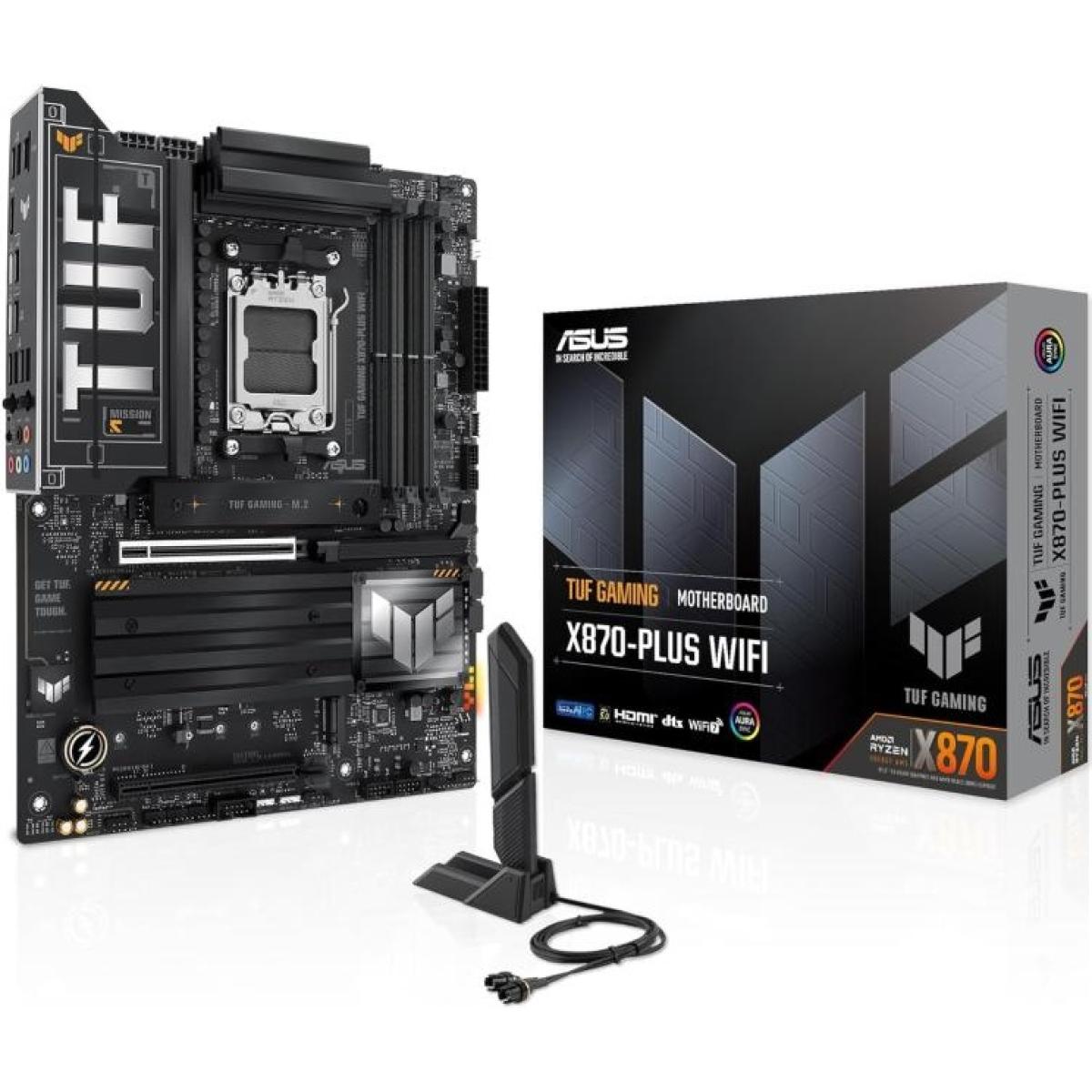

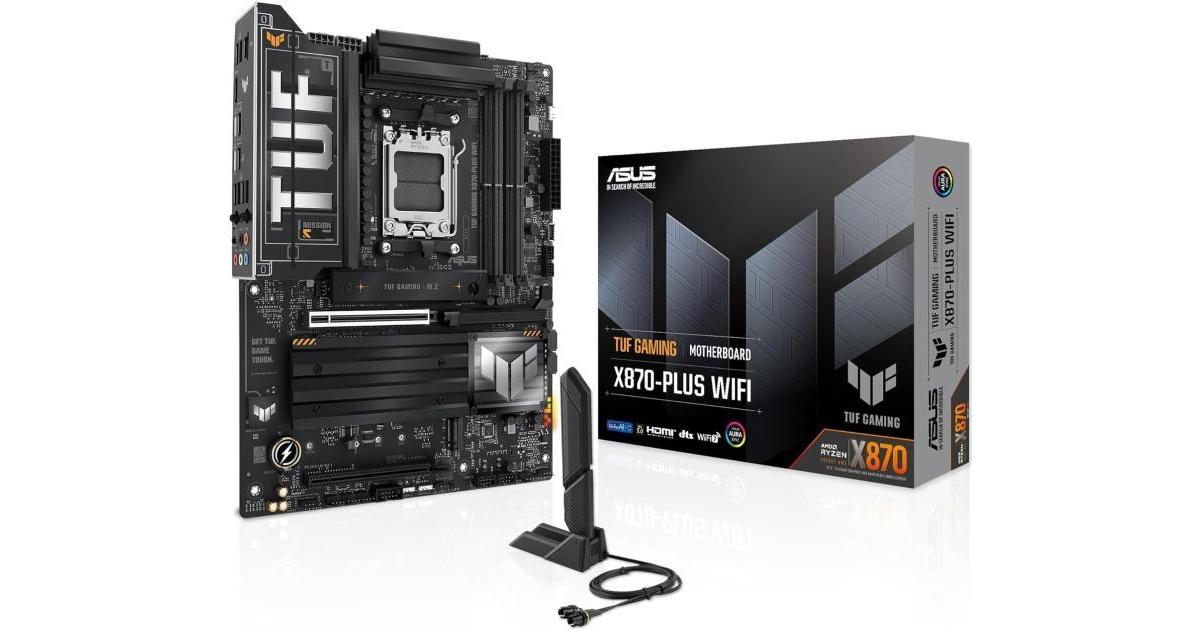

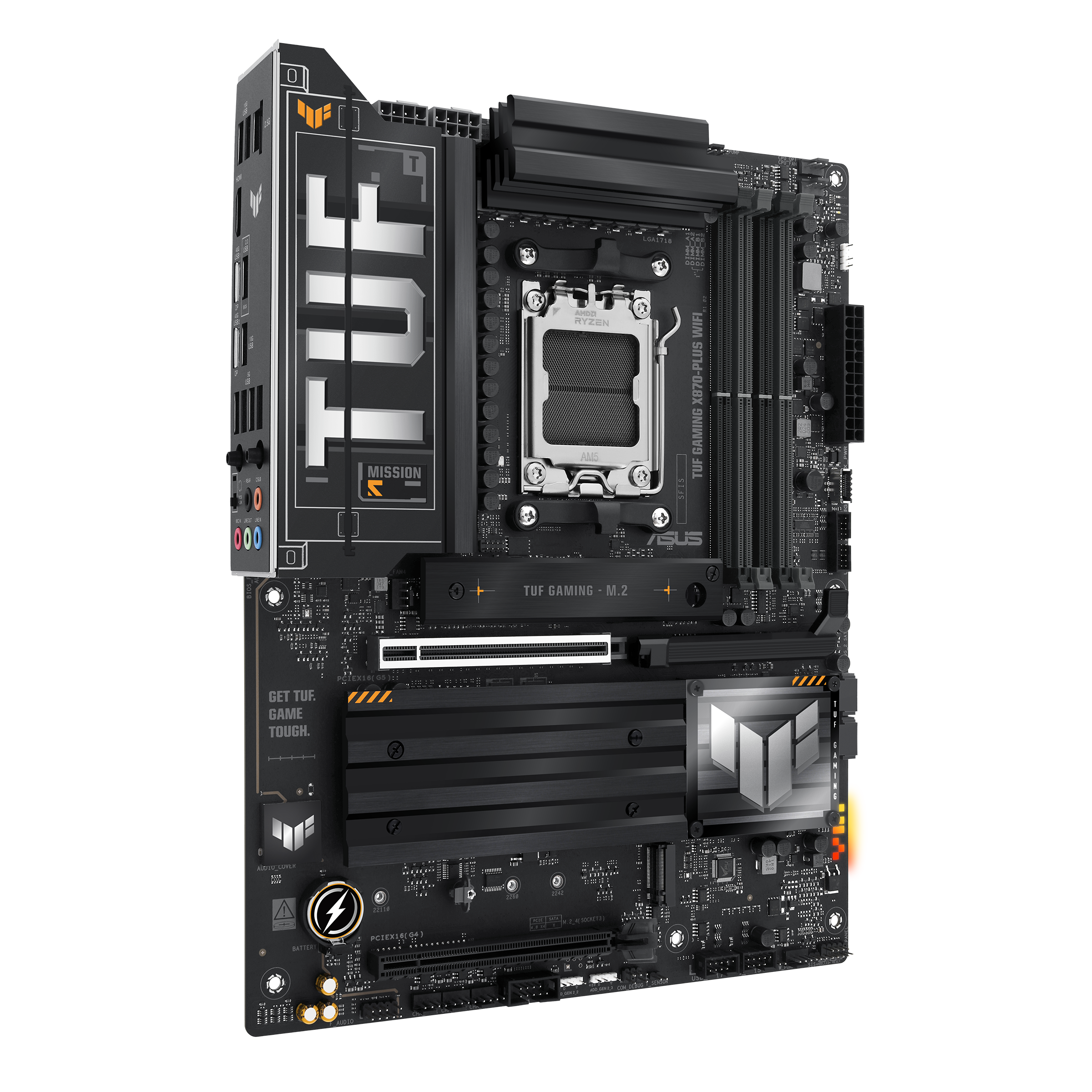

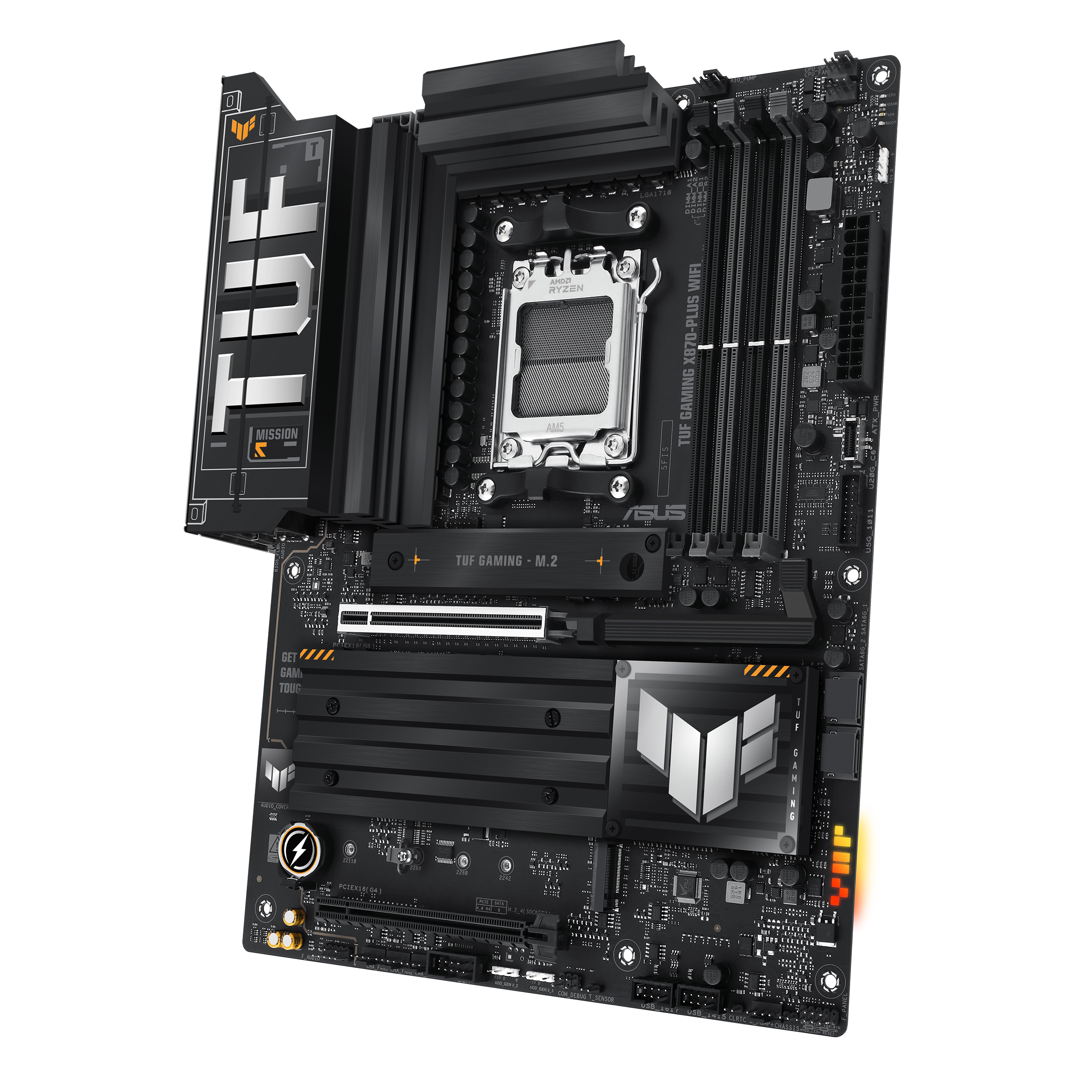

ASUS TUF Gaming X870-PLUS WIFI — ATX Motherboard for AMD Ryzen on AM5

The ASUS TUF Gaming X870-PLUS WIFI is a full-size ATX gaming motherboard powered by the AMD X870 chipset with the AM5 socket, compatible with AMD Ryzen 9000, 8000, and 7000 Series processors. It combines a high-bandwidth memory subsystem with flagship-tier connectivity for demanding gaming and content-creation workloads.

Four DDR5 DIMM slots support up to 256 GB at overclocked speeds exceeding 8000 MT/s, with support for both EXPO and AEMP memory profiles as well as ECC memory. A PCIe 5.0 x16 slot handles discrete graphics (Ryzen 9000/7000), while a PCIe 4.0 x16 (x4 mode) chipset slot provides additional expansion. M.2 slots are also included for NVMe storage.

The rear I/O is highlighted by two USB4 40 Gbps Type-C ports, three USB 10 Gbps Type-A ports, four USB 5 Gbps Type-A ports, and one USB 2.0 port. Networking is covered by Wi-Fi 7 and a Realtek 2.5Gb Ethernet port. A BIOS FlashBack button and an HDMI output for integrated graphics complete the panel.

Specifications

Socket: AM5
Motherboard Chipset: AMD X870
Motherboard Form Factor: ATX
Memory Type: DDR5
Wi-Fi Standard: Wi-Fi 7
PCIe Generation: PCIe 5.0
Memory Support: DDR5 up to 256GB, 8000+ MT/s (OC), ECC & Non-ECC, EXPO, AEMP
Memory Slots: 4
M.2 Slots: Yes
LAN: Realtek 2.5Gb Ethernet
Supported Processors: AMD Ryzen 9000 / 8000 / 7000 Series, Socket AM5
USB Ports (Rear): 2x USB4 40Gbps (Type-C), 3x USB 10Gbps (Type-A), 4x USB 5Gbps (Type-A), 1x USB 2.0 (Type-A)
PCIe Slots: 1x PCIe 5.0 x16 (CPU, x16 mode), 1x PCIe 4.0 x16 (Chipset, x4 mode)
