SKU: 02-03-00-00050
Socket: LGA1700
Motherboard Chipset: Intel B760
Motherboard Form Factor: Micro-ATX
Memory Type: DDR5
PCIe Generation: PCIe 4.0
Memory Support: DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800, max 96GB
Memory Slots: 2
M.2 Slots: Yes
Intel B760 Express Chipset, LGA1700 socket
2x DDR5 slots, up to 96GB, DDR5 8000(OC)
Supports Intel XMP overclocking profiles
Realtek 2.5Gb Ethernet
HDMI and VGA video outputs
Micro-ATX form factor
The ASUS PRIME B760M-K supports 12th, 13th, and 14th Gen Intel Core processors on the LGA1700 socket with the Intel B760 Express Chipset. It provides two DDR5 DIMM slots supporting up to 96GB with speeds up to DDR5 8000(OC) and Intel XMP support. Rear I/O includes 2.5G Ethernet, VGA, HDMI, and USB 3.2 Gen 1 ports in a Micro-ATX layout.
VAT inclusive
SKU: 02-03-00-00050
Warranty
Manufacturer limited warranty included. See product details for coverage length and terms.
Free Delivery
Easy Returns
Secure Payment

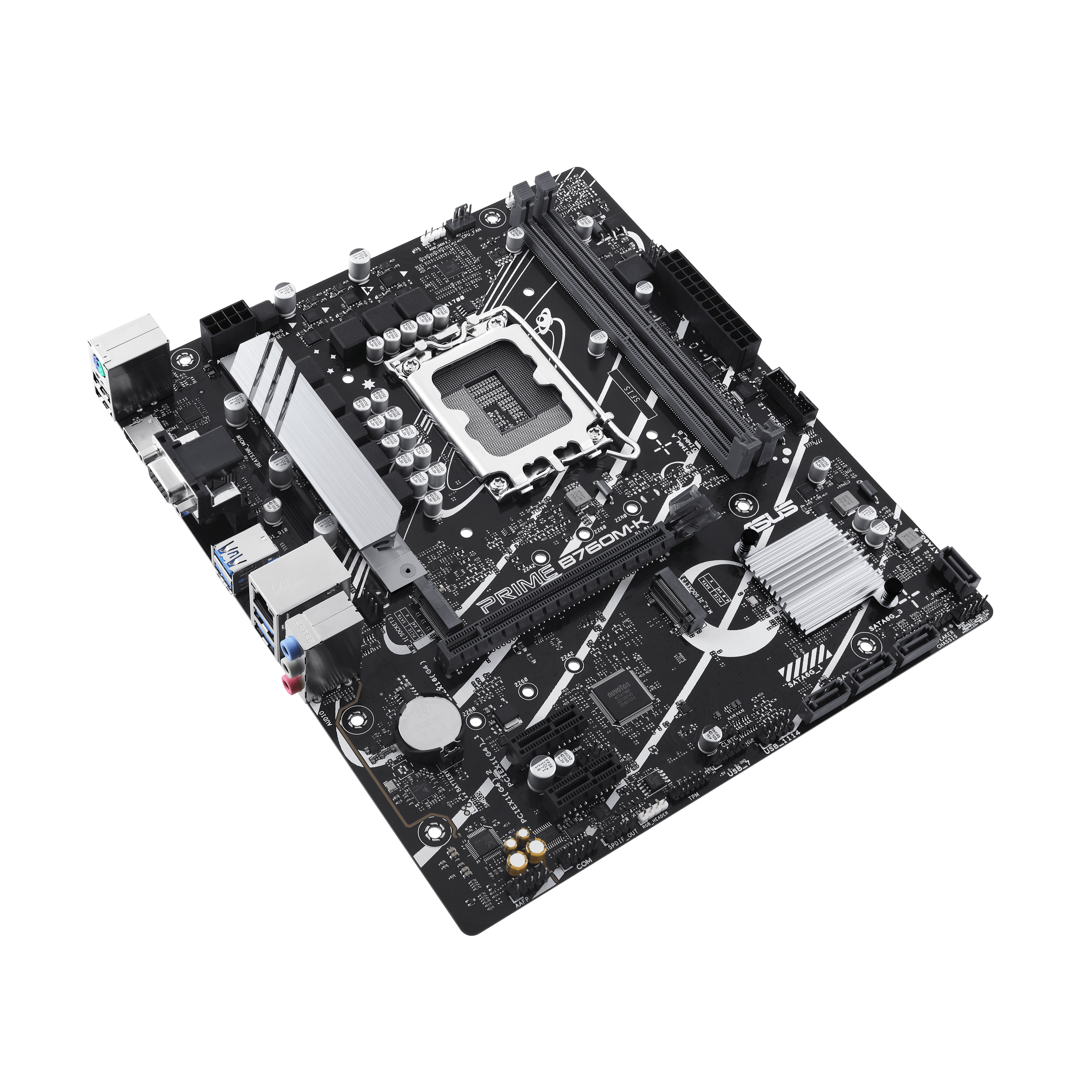

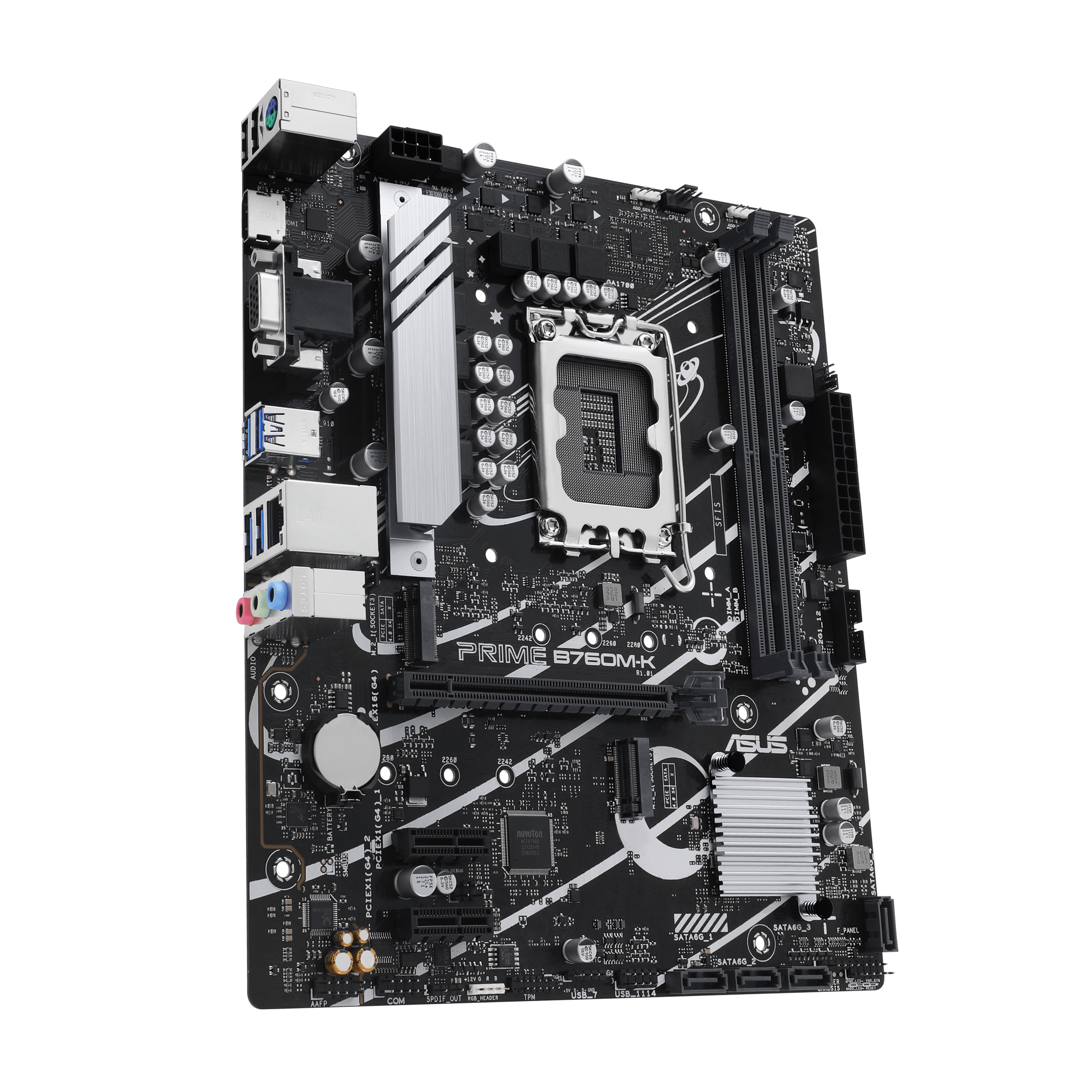

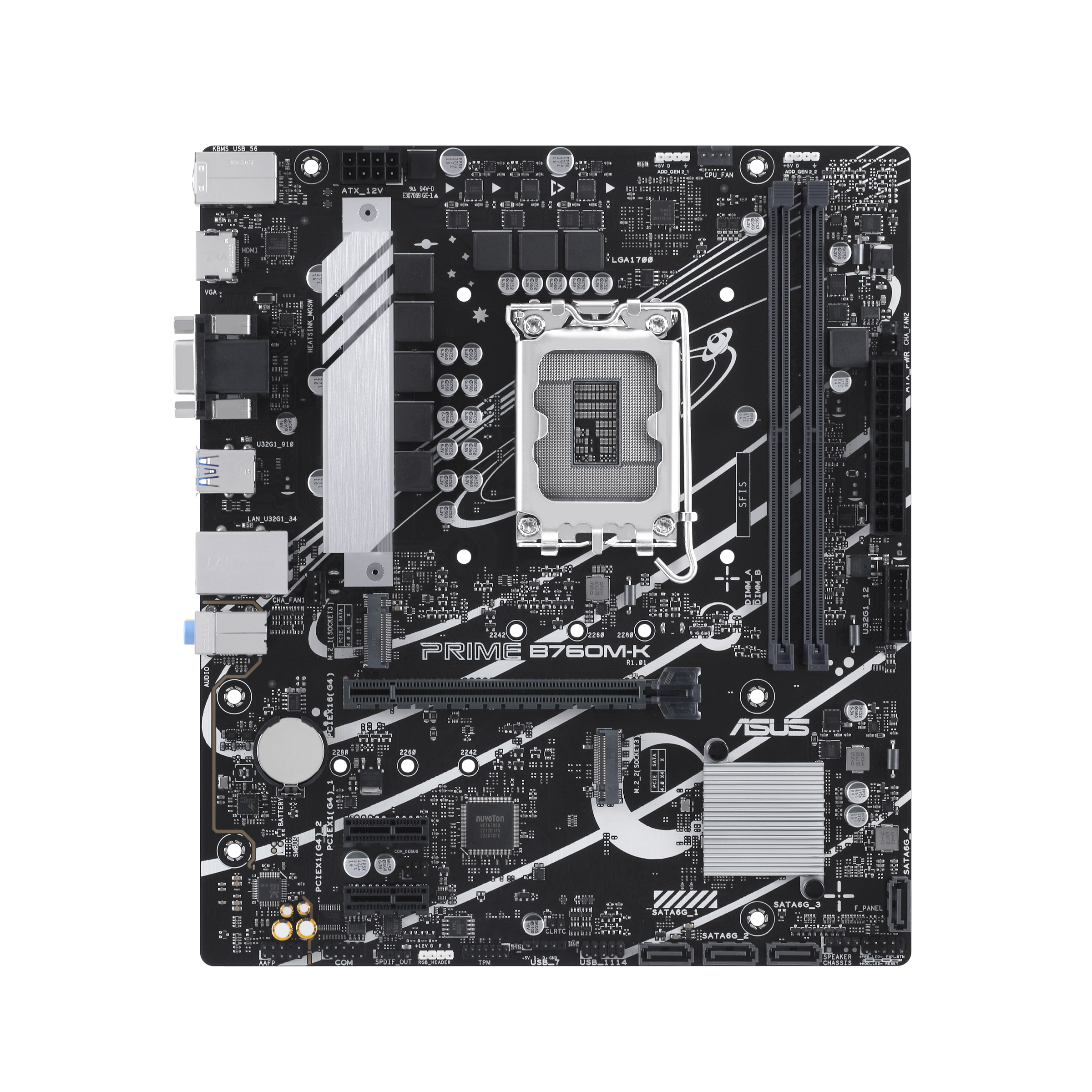

The ASUS PRIME B760M-K is a Micro-ATX motherboard powered by the Intel B760 Express Chipset on the LGA1700 socket, supporting 12th, 13th, and 14th Gen Intel Core processors as well as Pentium Gold and Celeron.
Two DDR5 DIMM slots support up to 96 GB of memory with speeds from DDR5 4800 up to DDR5 8000 (OC), and the board includes Intel XMP profile support for simplified memory overclocking. An M.2 slot provides fast NVMe storage connectivity alongside the standard PCIe 4.0 expansion.

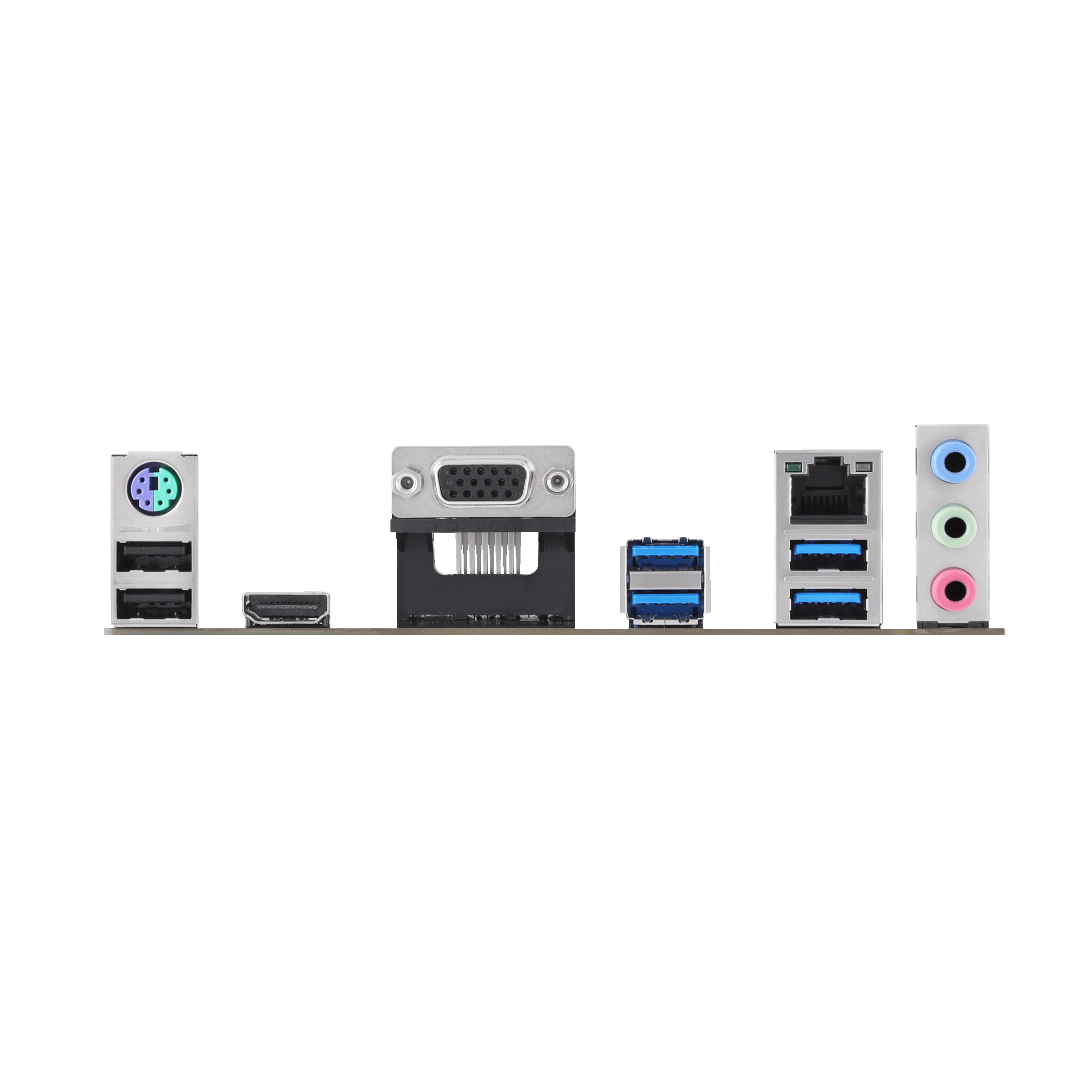

Rear connectivity features Realtek 2.5 Gb Ethernet, four USB 3.2 Gen 1 Type-A ports, two USB 2.0 Type-A ports, a three-jack audio panel, plus HDMI and VGA video outputs for use with processor-integrated graphics.
